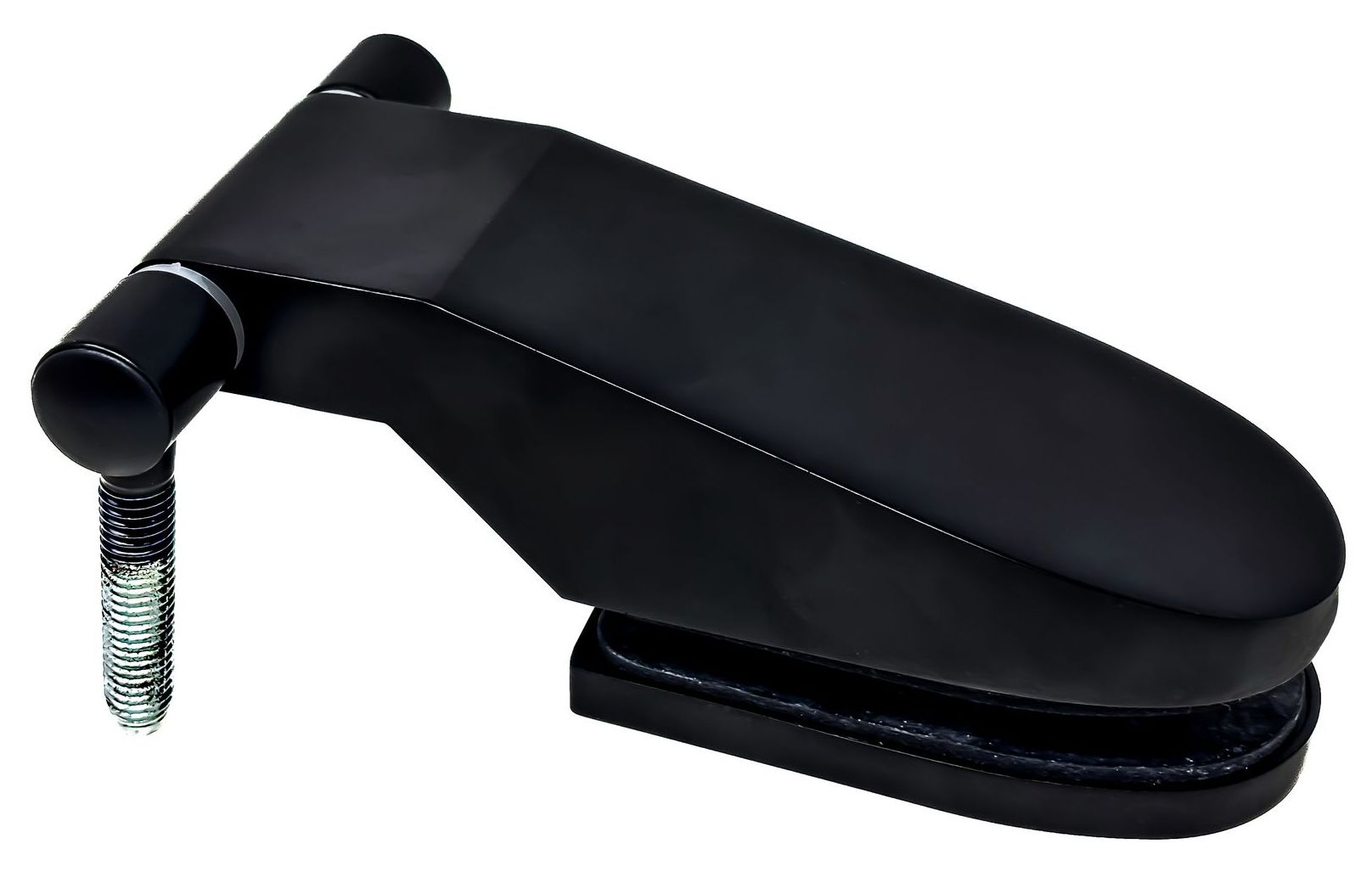

Door hinge „Tongue form“ matt-black

art. no. 851465

suitable for private and commercial facilities, with 2 drill-in threaded pins M8x40 mm, for glass pane inside in door frame. Height and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the adjustable eccentric is possible, 2 glass bore holes (dimension sheet on request), silent, maintenance-free plastic slide bearing, aperture angle 180°, door hinge made of corrosion-free zinc die-casting, turning pin and screws made of stainless steel, DIN left or right usable. Load-bearing capacity 25 kg/piece. Dim. WxH: approx. 132x79 mm

weight approx. 530 g

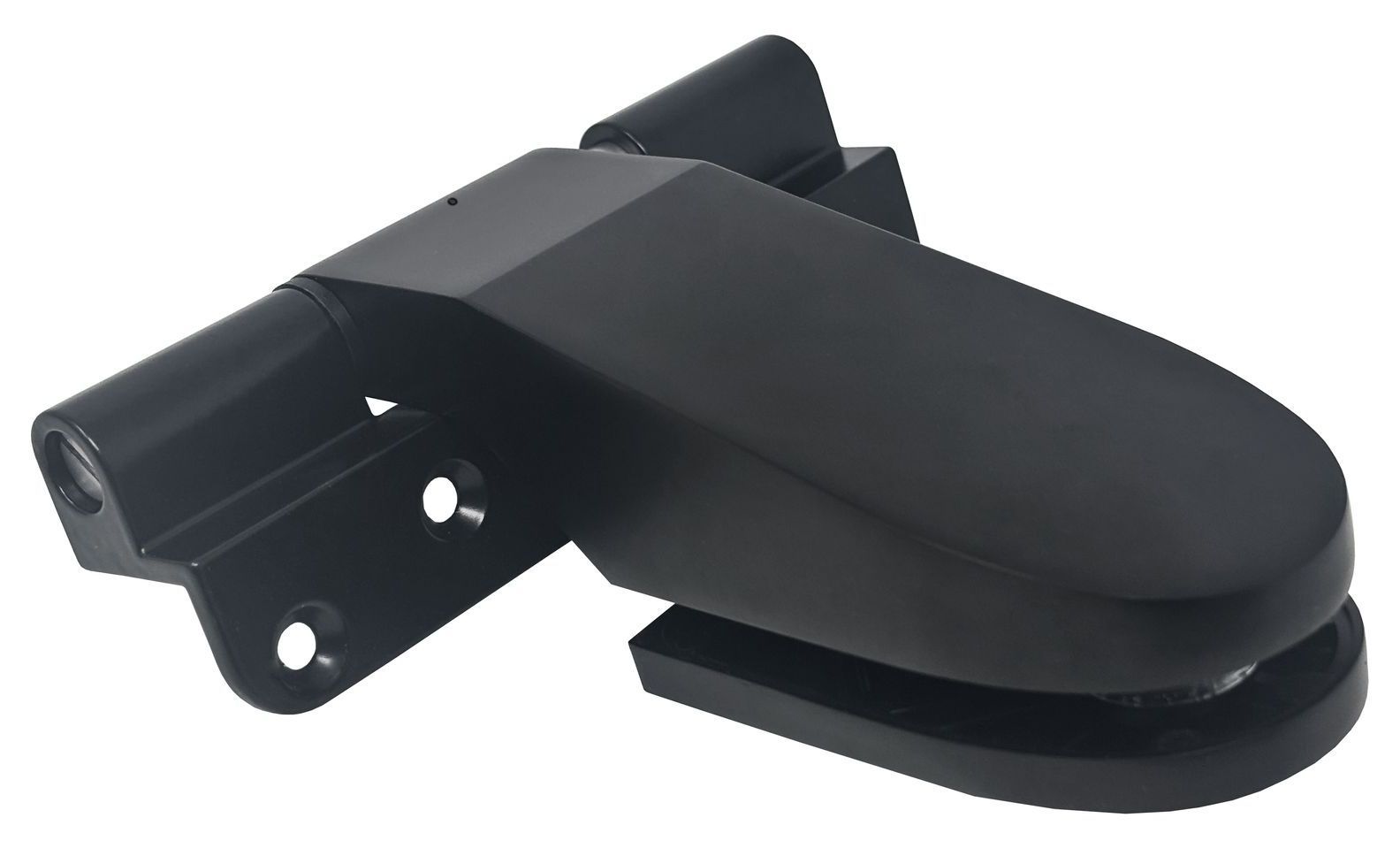

Door hinge self-closing „Tongue form“ matt-black

art. no. 852036 DIN left

art. no. 852037 DIN right

fastening in rabbet with screw-on band, for glass pane inside in door frame, suitable for private and commercial facilities with max. dim. glass door HxW 2000x900 mm, self-closing within an opening range of 0° - approx. 140° (0° - approx. 85° is availab-le on request) and static within a range of approx. 140° - 180° (approx. 85° - 180° is available on request). Warmth- and ener-gy-saving, avoids open doors because of careless users! Glass pane can be fitted floor-flushed as it will be slightly lifted by the opening movement. Height- and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the ad-justable eccentric is possible, 2 glass bore holes (dimension sheet on request). The complete pre-assembled door hinge is made of corrosion-free zinc die-casting, with turning pin and screws made of stainless steel. For usage in saline environment air you need special door hinges - please contact us in advance for this! All our door hinges are delivered for glass doors 8 mm thick, please inform use in advance if you need it for other glass door thicknesses (6 or 10 mm) than we will deliver you with different parts. Dim: WxH approx. 132x124 mm

weight approx. 720 g

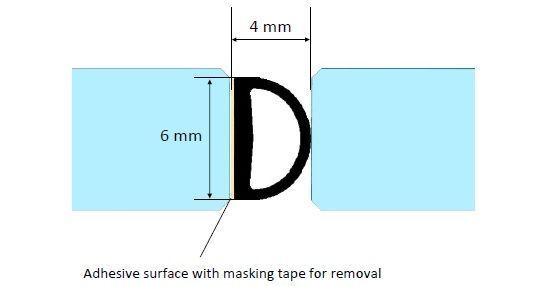

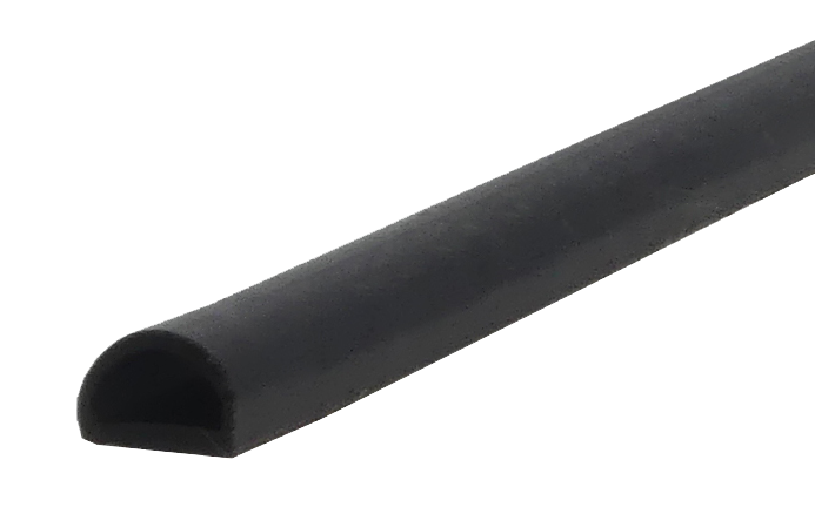

Glass-to-glass edge sealing black for sauna

art. no. 850565

suitable for glass doors 8-10 mm, made of up to 180 °C heat resistant self-adhesive silicone with removable masking tape, UV-, aging-, weather- and ozone-resistant. For larger order quantities we deliver each roll max. 100 m.

Width approx. 6 mm, height approx. 4 mm

weight approx. 15 g/m

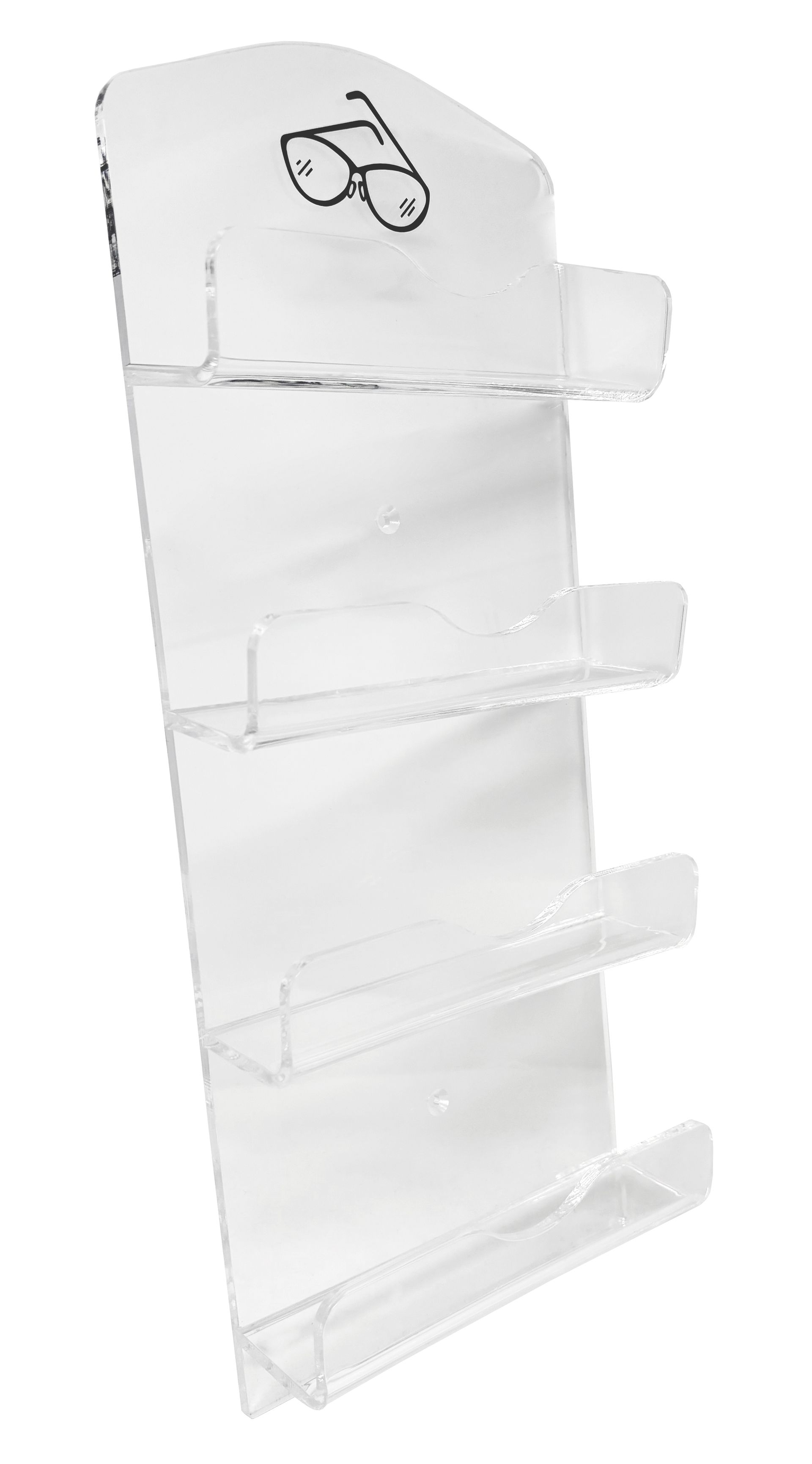

Holder for 4 glasses made of crystal-clear acrylic glass

art. no. 87798

with picture motif and pre-drilled screw holes

dim.: WxHxD approx. 170x420x56 mm

weight approx. 700 g

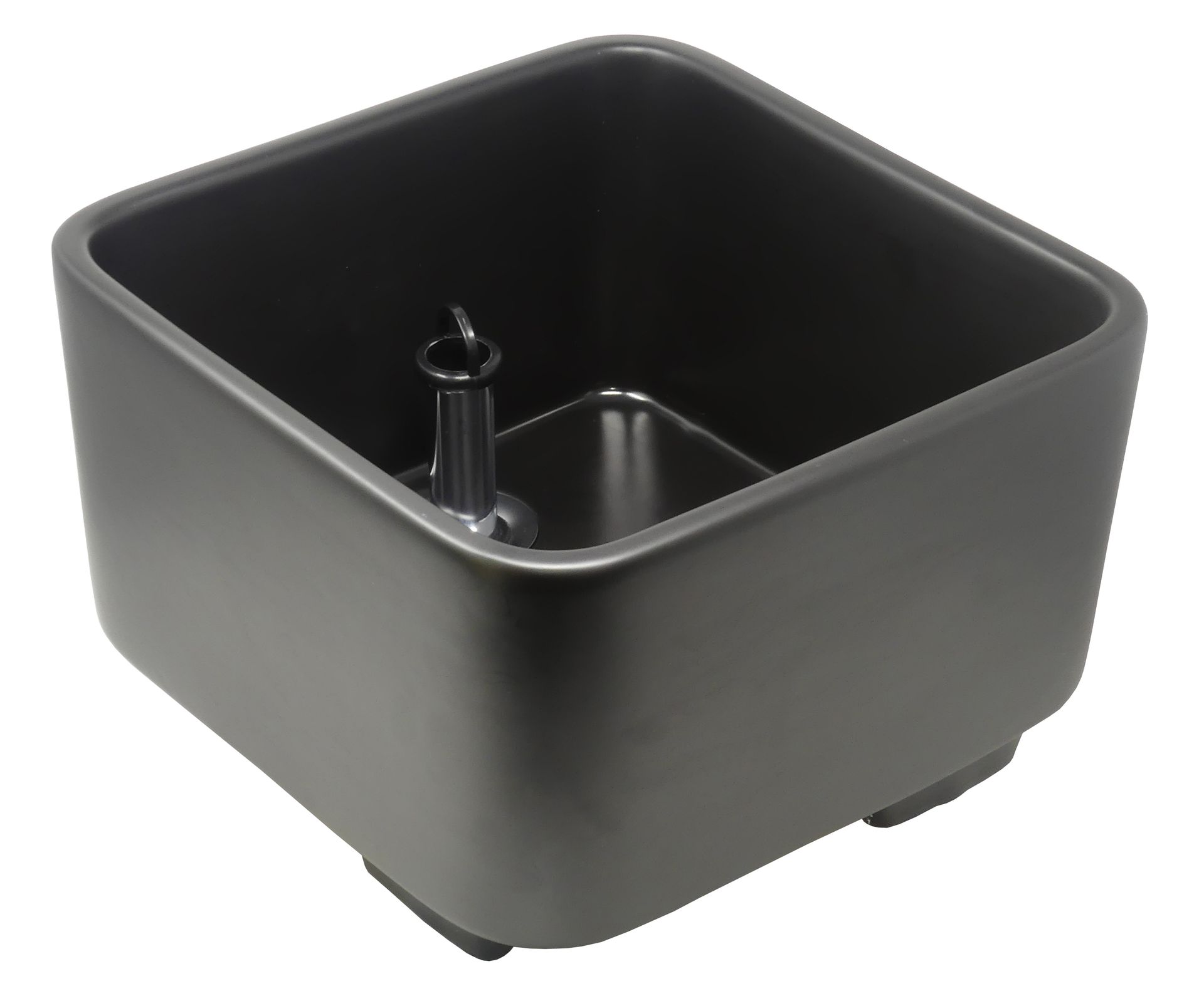

Square foot basin made of sanitary ceramic black

art. no. 87163

suitable for commercial use as fixed installation or portable, incl. overflow pipe made of high-polished chromed metal for a max. water level of approx.115 mm and a drain fitting 1 1/2”. Warm foot baths before and between the sauna sessions are part of the recommended healthy sauna bathing cycle.

approx. 16 l capacity

inner dim.: WxH approx. 325x180 mm

outer dim.: WxH approx. 365x230 mm

dimensional deviations of +/- 3 mm due to manufacturing

reasons are unavoidable

weight approx. 15.3 kg
