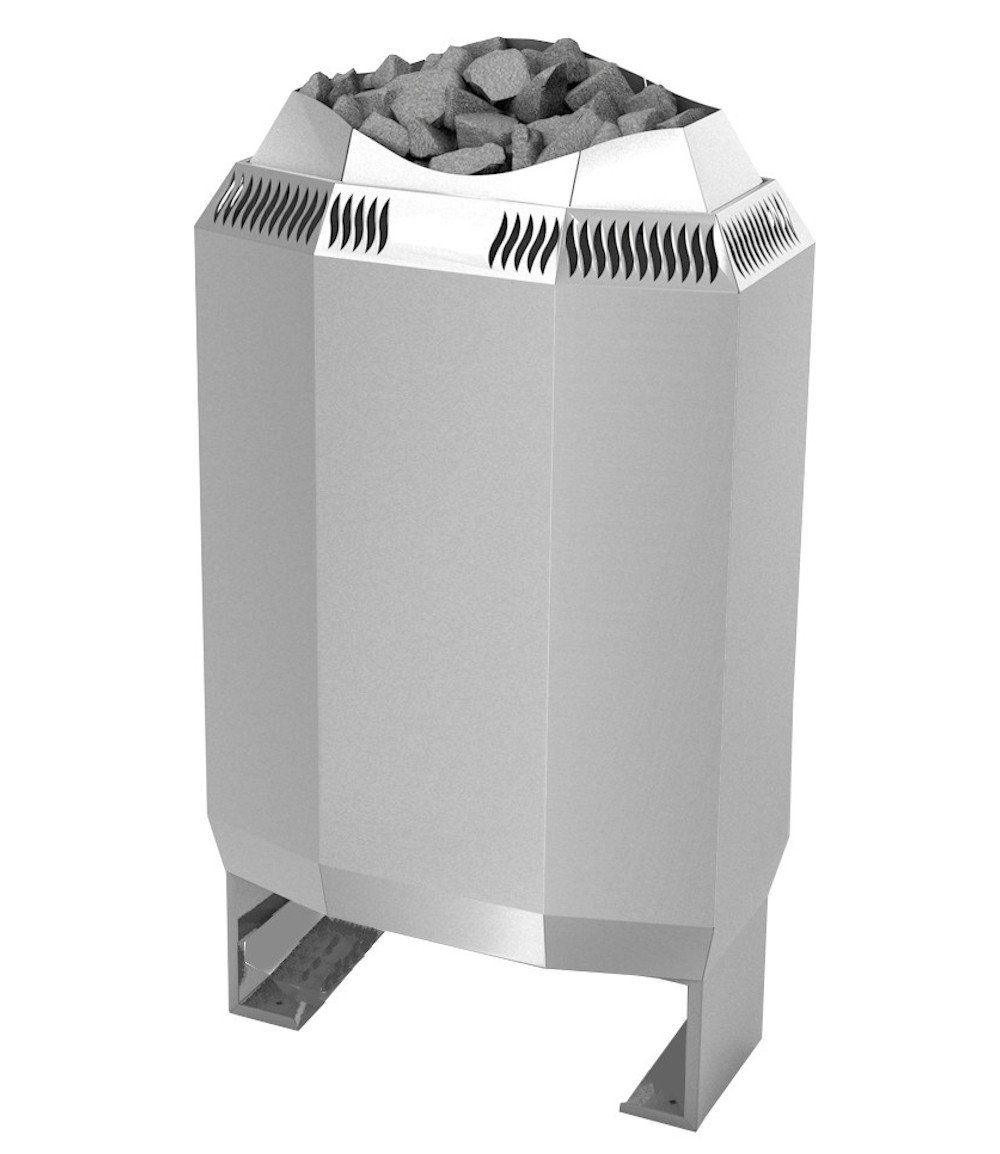

Electric-/wood sauna heaters, control panels and accessories
- for commercial and private sauna
- standing device
- inner-/outer cladding and stone container made of stainless steel (is available on request with black outer cladding)
- durable heating elements made from European production
| art. no. | heating power kW | suitable for sauna volume m³ approx. | dim. in mm WxHxD approx. | stone filling kg approx. | weight without stones approx. | electrical connection |
|---|---|---|---|---|---|---|
| 81101 | 6.0 | 6-8 | 485x910x305 | 30 | 20 | 400 V/3 N~/50 Hz |
| 81136 | 9.0 | 9-12 | 485x910x305 | 30 | 20 | 400 V/3 N~/50 Hz |
| 81138 | 10.5 | 10-14 | 485x910x305 | 30 | 20 | 400 V/3 N~/50 Hz |

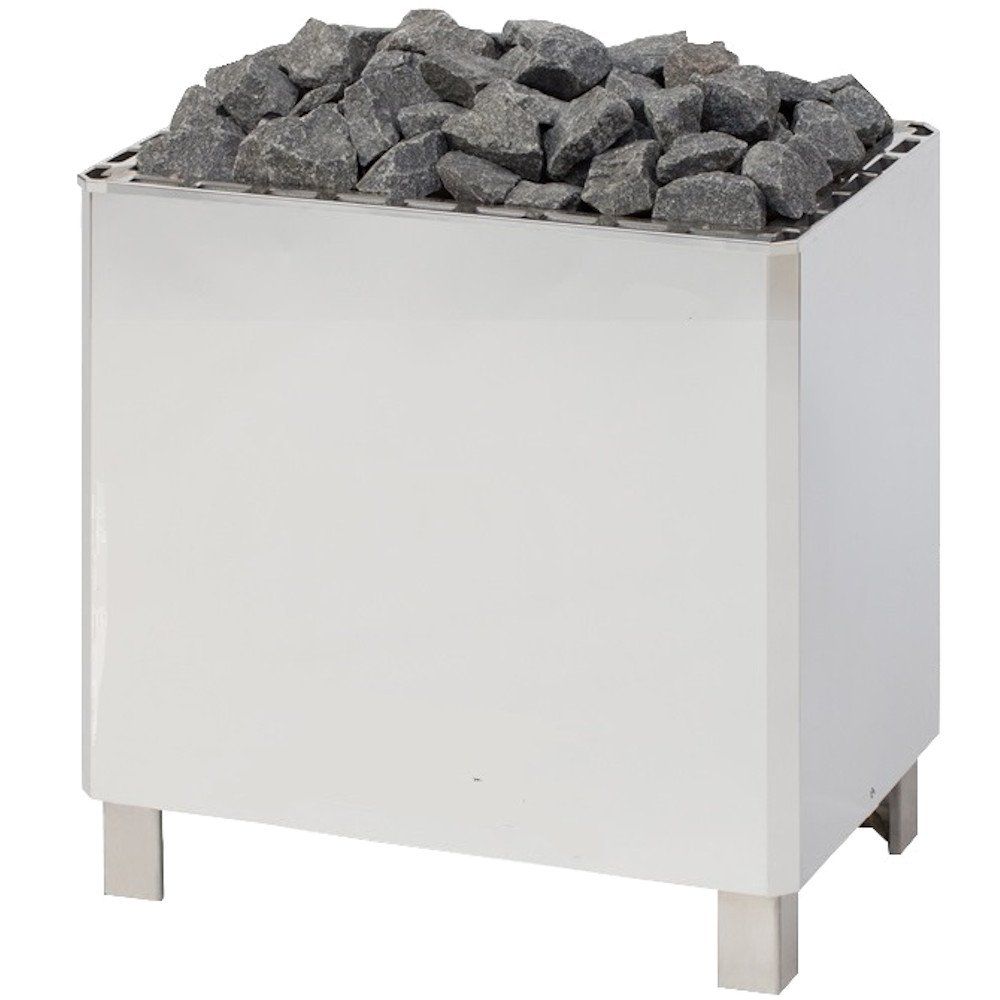

- for commercial sauna
- standing device
- inner-/outer cladding and stone container made of stainless steel
- durable heating elements with 2.0-2.7 kW/pc. depending on heating power made from European production
| art. no. | heating power kW | suitable for sauna volume m³ approx. | dim. in mm WxHxD approx. | stone filling kg approx. | weight without stones approx. | electrical connection |
|---|---|---|---|---|---|---|
| 81141 | 12.0 | 12-18 | 480x660x560 | 40 | 25 | 400 V/3 N~/50 Hz |
| 81151 | 14.1 | 14-22 | 480x660x560 | 30 | 25 | 400 V/3 N~/50 Hz |
| 81161 | 18.0 | 18-28 | 700x660x560 | 80 | 25 | 400 V/3 N~/50 Hz |
| 81166 | 20.1 | 20-30 | 700x660x560 | 80 | 36 | 400 V/3N~/50 Hz |
| 81171 | 24.3 | 24-38 | 700x660x560 | 80 | 39 | 400 V/3N~/50 Hz |
| 81181 | larger heating powers | are available on | request |

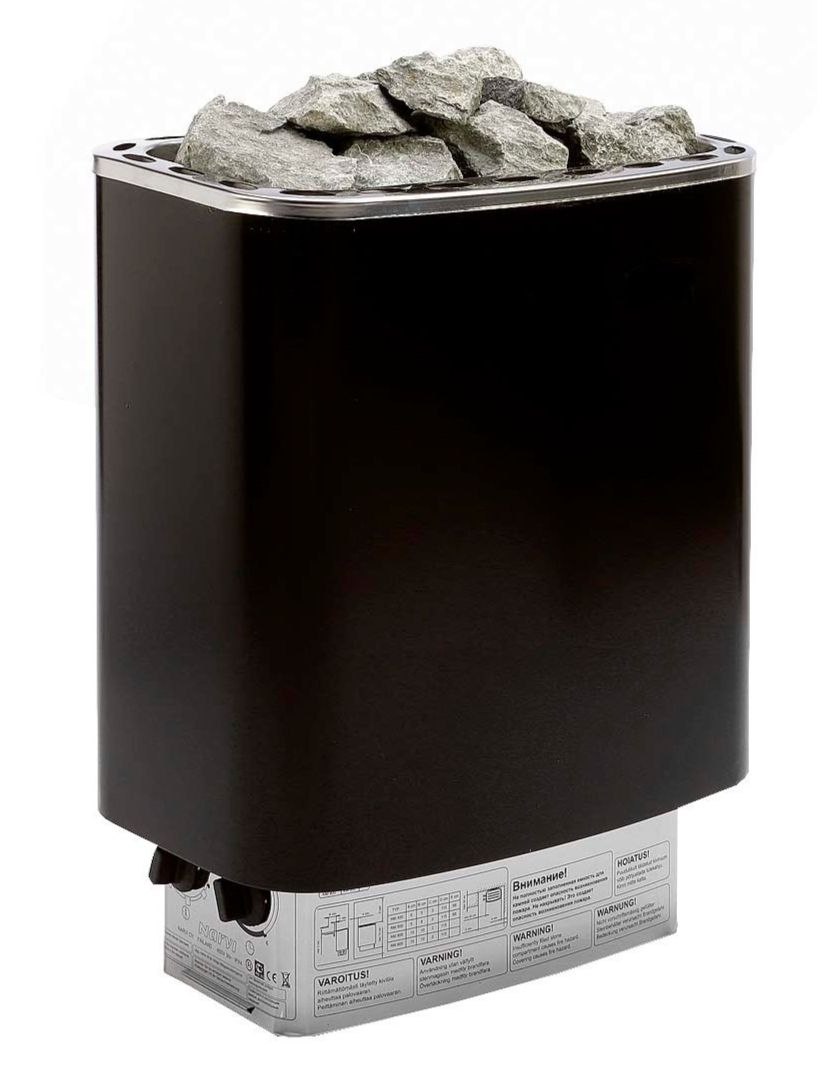

- for private sauna
- wall hanging device
- outer cladding is black coated (graphite-grey or brushed stainless steel claddings are available on request)
- durable heating elements with 1.5-3.0 kW/pc. depending on heating power
- MES: (art. nos. 81407-81437) with integrated control panel control is mountable on the right or left side, with adjustable presetting timer up to max. 8 hours and heating time up to max. 4 hours
- OS: (art. nos. 81507-81537) without intergrated control panel an additional control panel (e. g. art. no. 81711, 81716 or 81718-34) is necessary
| art. no. | heating power kW | suitable for sauna volume m³ approx. | dim. in mm WxHxD approx. | stone filling kg approx. | weight without stones approx. | electrical connection |
|---|---|---|---|---|---|---|
| 81407 | 4.5 | 4-6 | 430x580x300 | 30 | 12 | 400 V/3 N~/50 Hz |
| 81417 | 6.0 | 6-8 | 430x580x300 | 30 | 12 | 400 V/3 N~/50 Hz |
| 81437 | 9.0 | 9-12 | 430x580x300 | 30 | 12 | 400 V/3 N~/50 Hz |
| 81507 | 4.5 | 4-6 | 430x580x300 | 30 | 12 | 400 V/3N~/50 Hz |
| 81517 | 6.0 | 6-8 | 430x580x300 | 30 | 12 | 400 V/3N~/50 Hz |
| 81537 | 9.0 | 9-12 | 430x580x300 | 30 | 12 | 400 V/3N~/50 Hz |

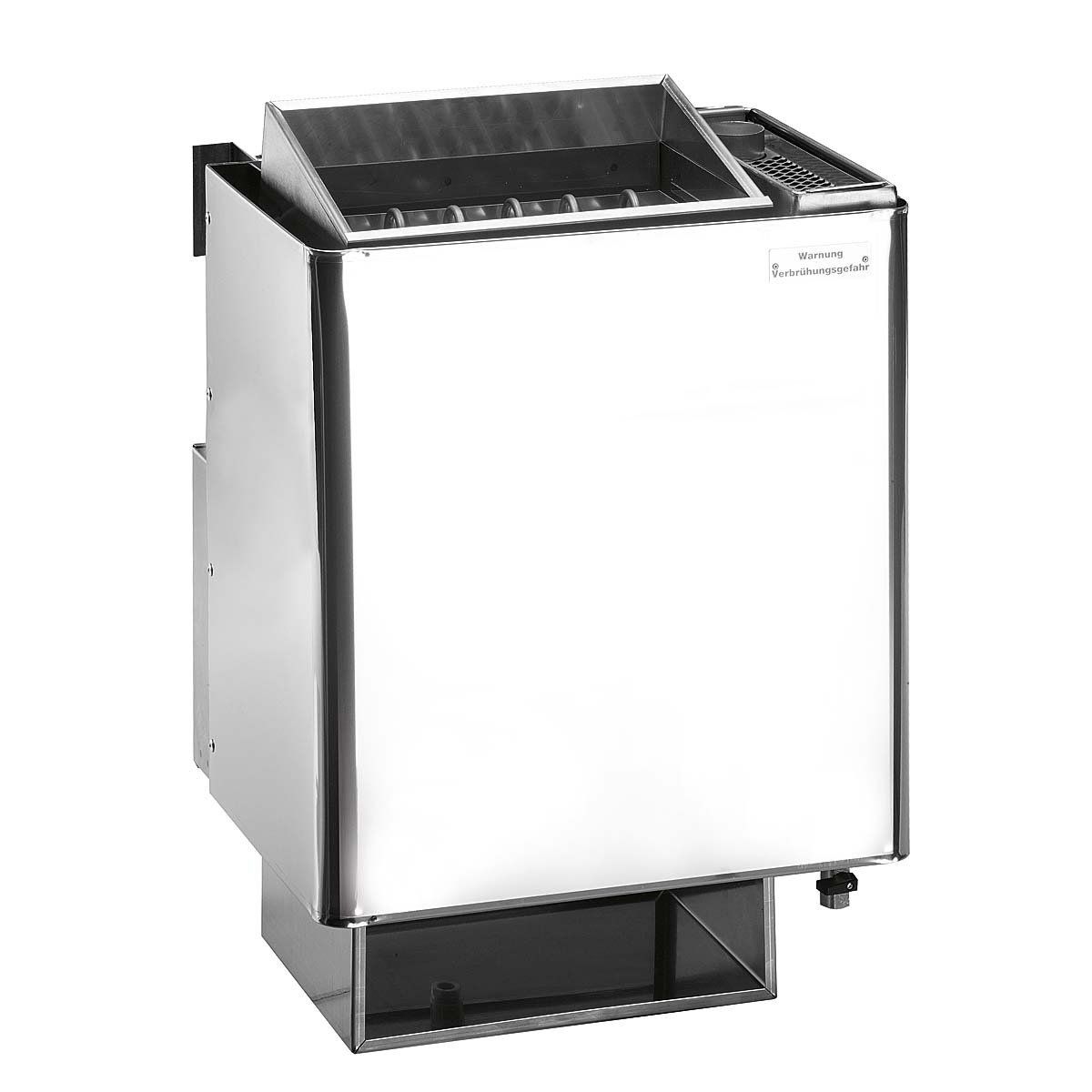

- sauna heater with intergrated 1.5 kW evaporator
- for commercial and private sauna
- wall hanging device with floor protection tub
- inner-/outer cladding and evaportator container with approx. 5 l are made of stainless steel
- durable heating elements with 1.5 kW/pc.
- incl. herbal tray (suitable fragrance herbs see here) and aroma cup made of stainless steel, drain tab and dry run protection by a
| art. no. | heating power kW | suitable for sauna volume m³ approx. | dim. in mm WxHxD approx. | stone filling kg approx. | weight without stones approx. | electrical connection |
|---|---|---|---|---|---|---|
| 82412 | 4.0 | 4-6 | 450x630x360 | 12 | 20 | 400 V/3 N~/50 Hz |
| 82422 | 6.0 | 6-8 | 450x630x360 | 12 | 20 | 400 V/3 N~/50 Hz |
| 82432 | 7.5 | 7-9 | 450x630x360 | 12 | 20 | 400 V/3 N~/50 Hz |
| 82442 | 9.0 | 9-12 | 450x630x360 | 12 | 20 | 400 V/3 N~/50 Hz |
We deliver all sauna heaters without infusion stones. However, the sauna heaters are only allowed to put into operation with the sufficient quantity of stones! If required, please order the infusion stones art. no. 83500-83502 additional in sufficient quantity.

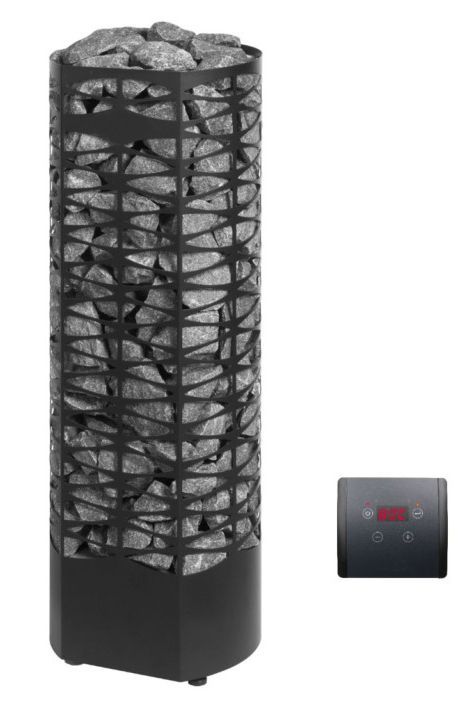

Electric sauna heaters - other models
art. no. 81599

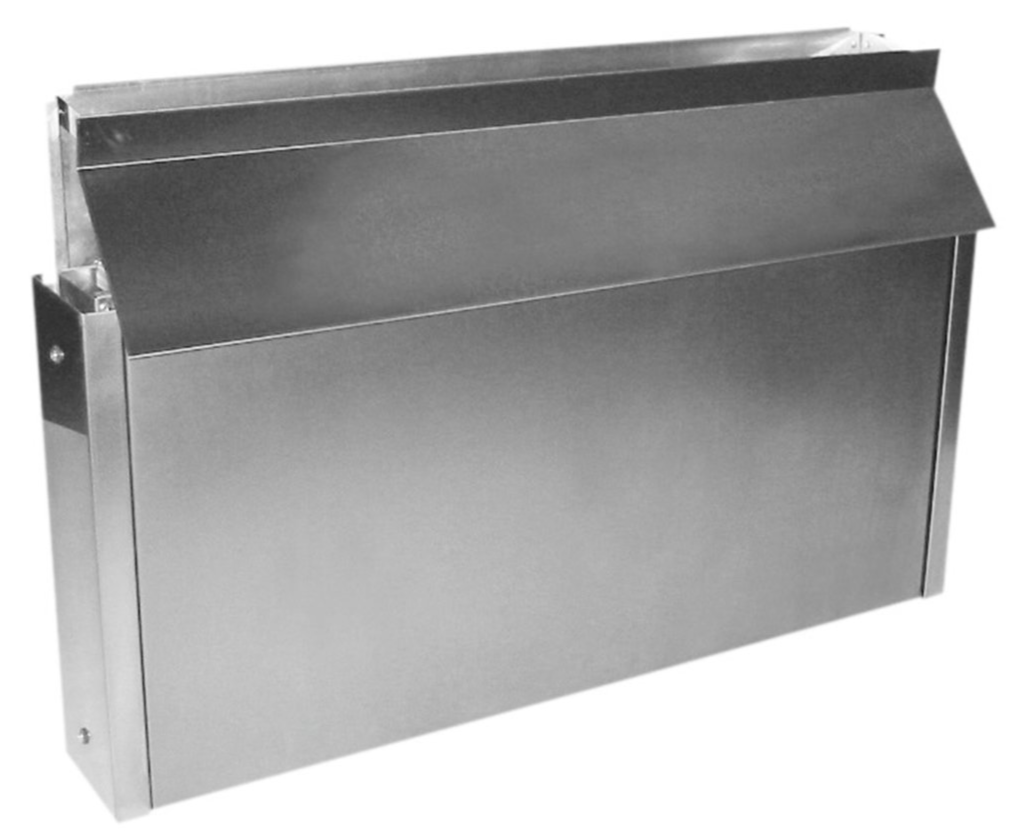

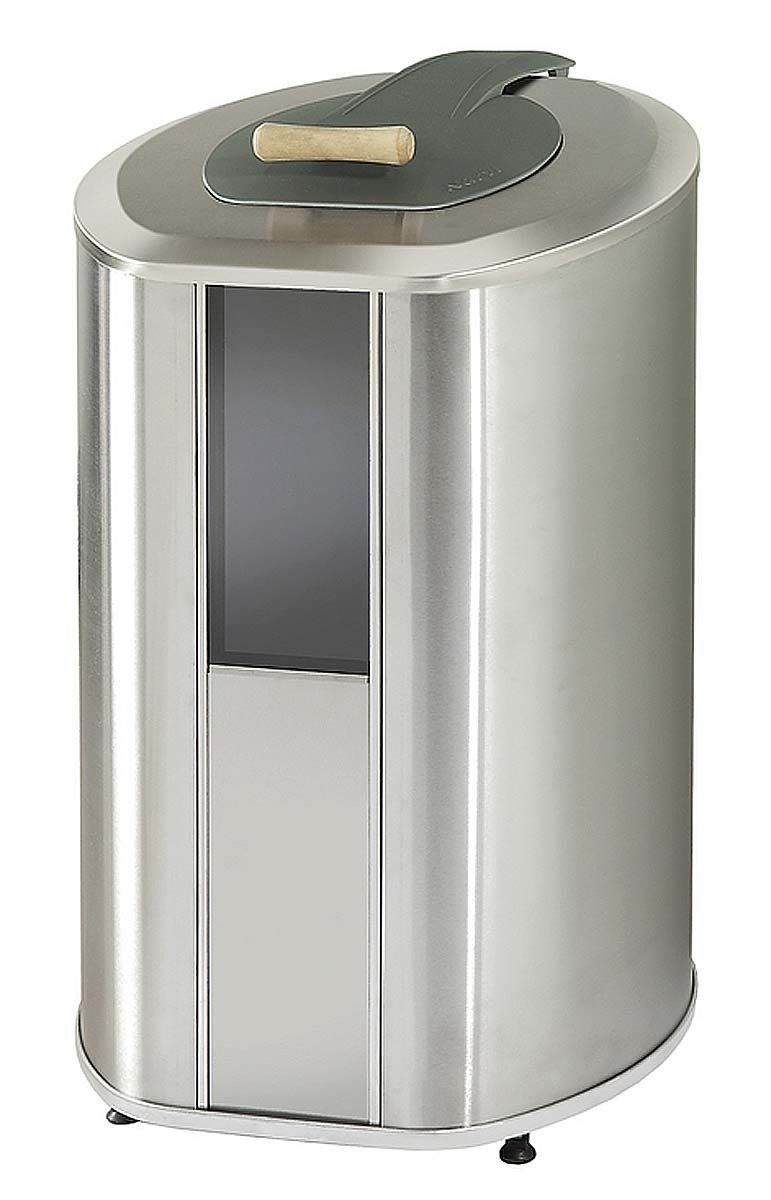

e. g. with approx. 80 kg infusion stones constantly heated up with selectable 150 - 220 °C for heating-up the cabin to sauna temperature within only a few minutes or sauna heater "Tower model" with approx. 80 kg infusion stones with a control panel mounted in the sauna room (max. height 80 cm) or sauna heater as back-wall/under-bench heater are available on request

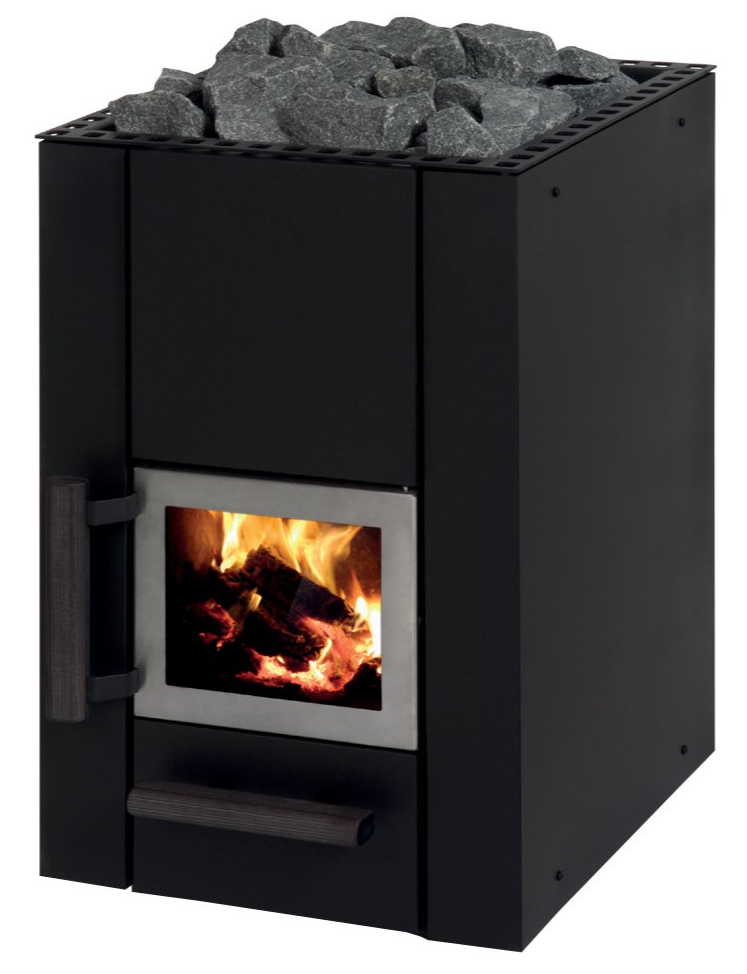

Wooden fuelled sauna heaters
art. no. 81599
different models, i. a. with BImSchV 2 permit or with wood filling from an anteroom are available on request

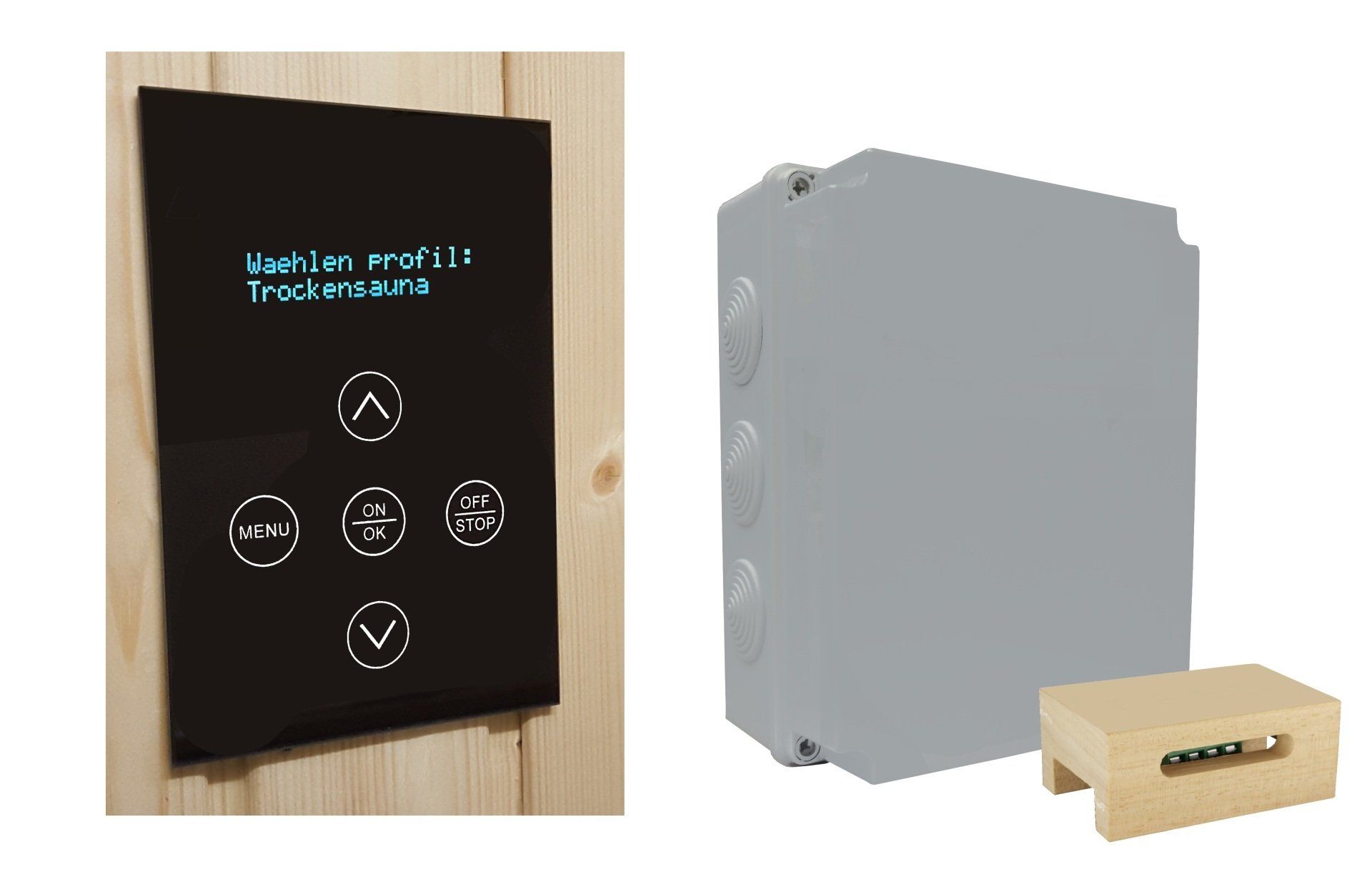

Control panels with touch fields
art. no. 81718
with touch fields for switching on/off, stepless temperature selection 30-110 °C - whereby the reheating of the sauna heater to reach the desired sauna temperature can be set by the customer himself between 1-6 °C, 24-hours pre-setting timer, fan, light, automatic infusion, operations time limit can be set up to max. 20 hours, menu guidance in German or English - other languages are programmable on request. The control panel with white fields on a black surface is made of hardened glass with metal housing on the back to be embedded in the sauna wall - suitable ambient temperature 0-60 °C, IP40, WxHxD approx. 114x166x32 mm. Separate power case made of plastic - suitable ambient temperature 0-60 °C, IP65, WxHxD approx. 200x250x116 mm. Including temperature sensor and overheating protection in a wooden case WxHxD approx. 41x41x30 mm (connection cables for temperature sensor and overheating protection art. nos. 85884/85885 are not included in the delivery - please order the required length separately), 400 V/50 Hz, suitable for sauna heaters up to 9 kW
weight approx. 2.0 kg
Additionally suitable for operation via app with mobile phone/tablet
art. no. 81730
please note that safety measures such as door contact switch or heater shut-off rocker may possibly be necessary, otherwise like art. no. 81718
Additionally with bluetooth function e. g. for music reception
art. no. 81732
otherwise like art. no. 81718
Control unit with black fields on a white surface
art. no. 81734
otherwise like art. no. 81718
For sauna heaters with evaporators
art. no. 81736
evaporators power max. 5 kW, otherwise like art. no. 81718
For sauna heaters with heating powers over 9 kW
art. no. 81738
available for sauna heaters up to 15, 22 or 30 kW, otherwise like art. no. 81718

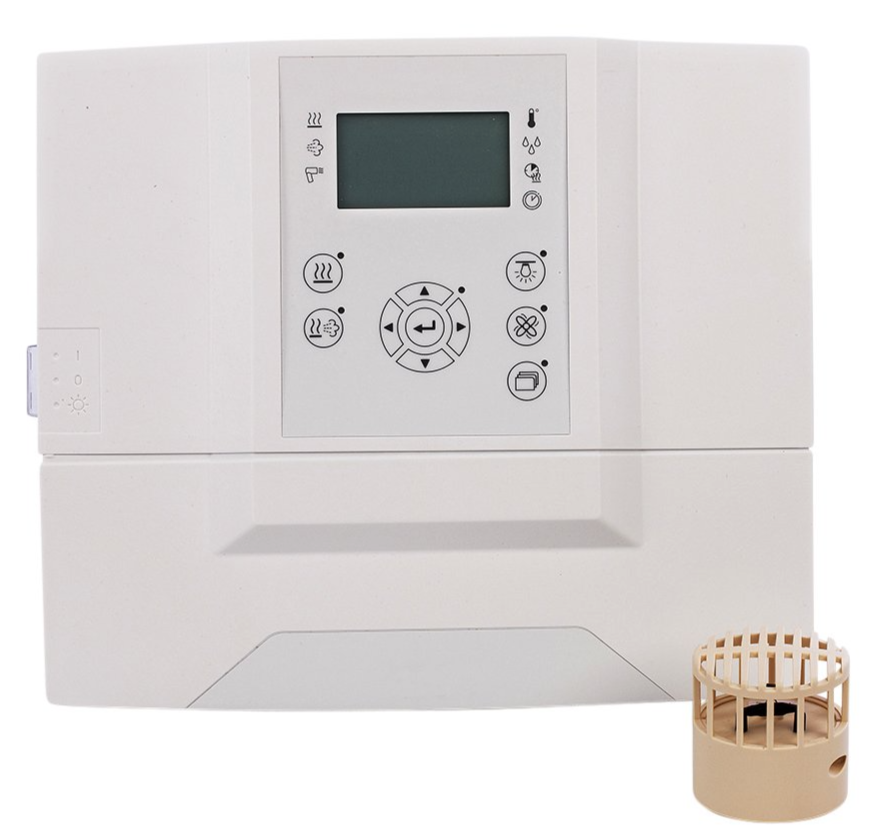

Digital control panel for sauna heater up to 9 kW with 24 hours pre-setting timer
art. no. 81716
with touch fields for stepless temperature selection 10-110 °C, switching on/off, fan and light. With operation time limit 6 hours (can be extended by the user for commercial operation up to max. 20 hours at the service menu). Incl. temperature sensor and overheating protection in a plastic case (connection cables for temperature sensor/overheating protection art. nos. 85884/85885 are not included in the delivery, please order the required length separately), 400 V/50 Hz, IP44-waterprotected, suitable ambient temperature 0-40 °C. Made in Germany. For sauna heaters with heating powers over 9 kW we can offer you an additional power switching device on request
dim.: WxHxD approx. 285x247x87 mm
weight approx. 2.6 kg

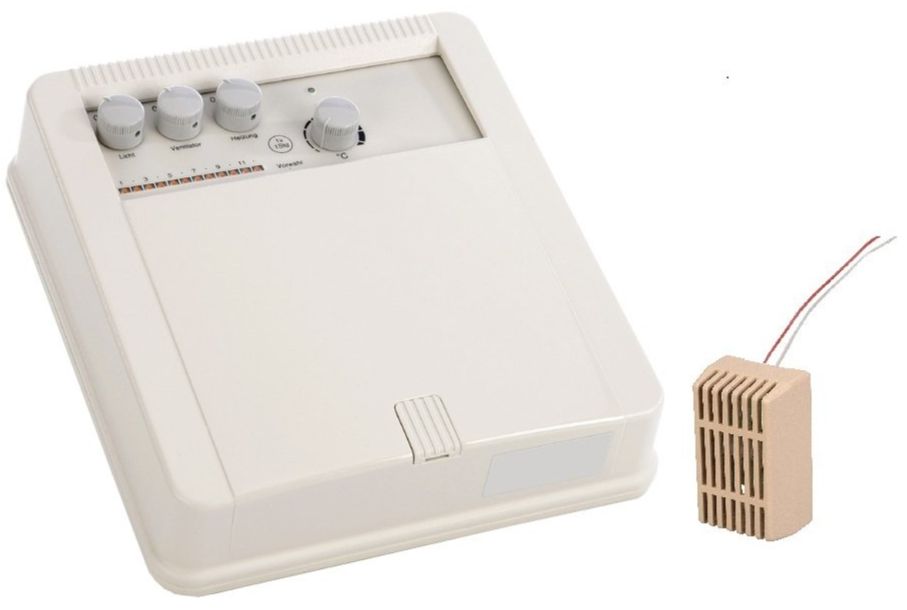

Control panel for sauna heater up to 9 kW with 12 hours pre-setting timer
art. no. 81711
with turning knobs for stepless temperature selection 30-120 °C, switching on/off, fan and light as well as touch fields for 12 hours pre-setting timer. Is usable by a from an electrician pluggable jumper with or without operation limit timer of 6 or 12 hours. With control lamps for operation, heating period and pre-setting timer. Incl. temperature sensor and overheating protection in a plastic case with red and white twin wire 2x0.5 mm² length approx. 3 m, 400 V/50 Hz, IP44-waterprotected, Made in Germany. For sauna heaters with heating powers over 9 kW is additionally a power switching device see art. no. 8178 necessary. A control panel for sauna heater with evaporator we can offer you on request
dim.: WxHxD approx. 215x230x70 mm
weight approx. 1.5 kg

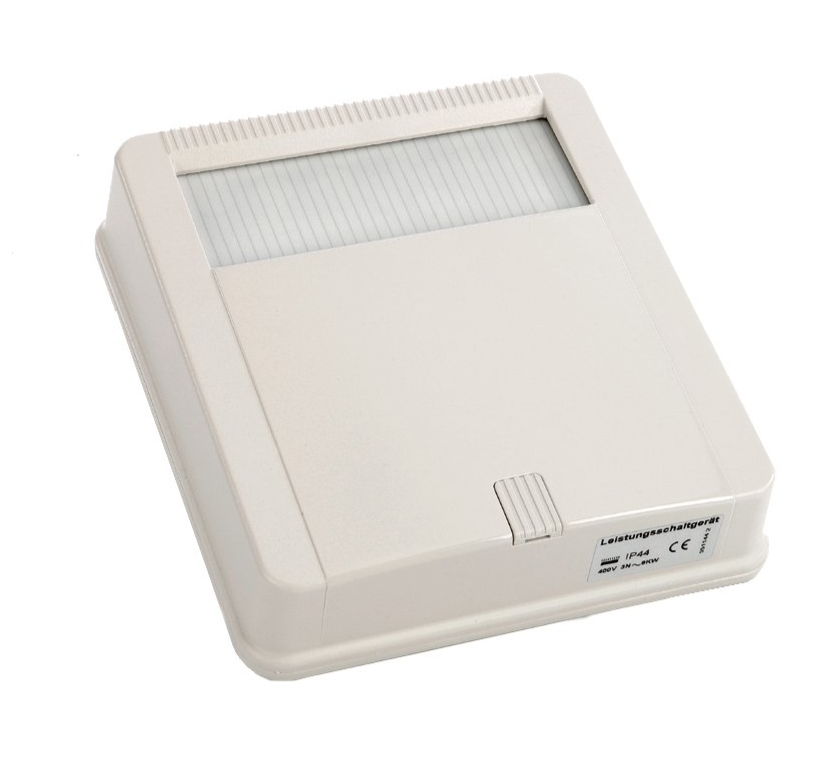

Power switching device 9 kW
art. no. 8178
combined with the control panel art. no. 81711 the maximal switching power is 18 kW (power switching device 21 kW for a maximum switching power of 30 kW is available on request), 400 V/50 Hz
dim.: WxHxD approx. 215x230x70 mm
weight approx. 1.5 kg

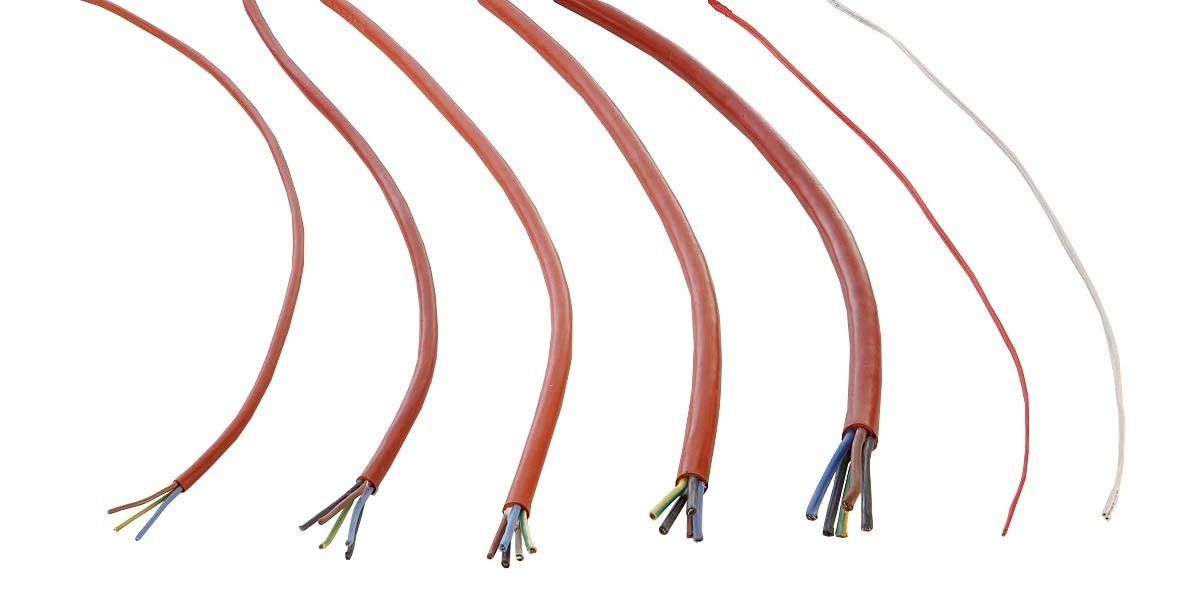

Silicone cables heat resistant up to 180 °C
3x1.5 mm² for heaters up to 3 kW art. no. 85872
5x1.5 mm² for heaters up to 6 kW art. no. 85802
5x2.5 mm² for heaters up to 9 kW art. no. 85812
5x4.0 mm² for heaters up to 15 kW art. no. 85822
5x6.0 mm² for heaters up to 18 kW art. no. 85832
Silicone twin wire 2x0.75 mm²
for the connection of temperature-/moisture sensor and overheating protection to the electrical control panel as well as for loudspeakers
Colour red art. no. 85884
Colour white art. no. 85885

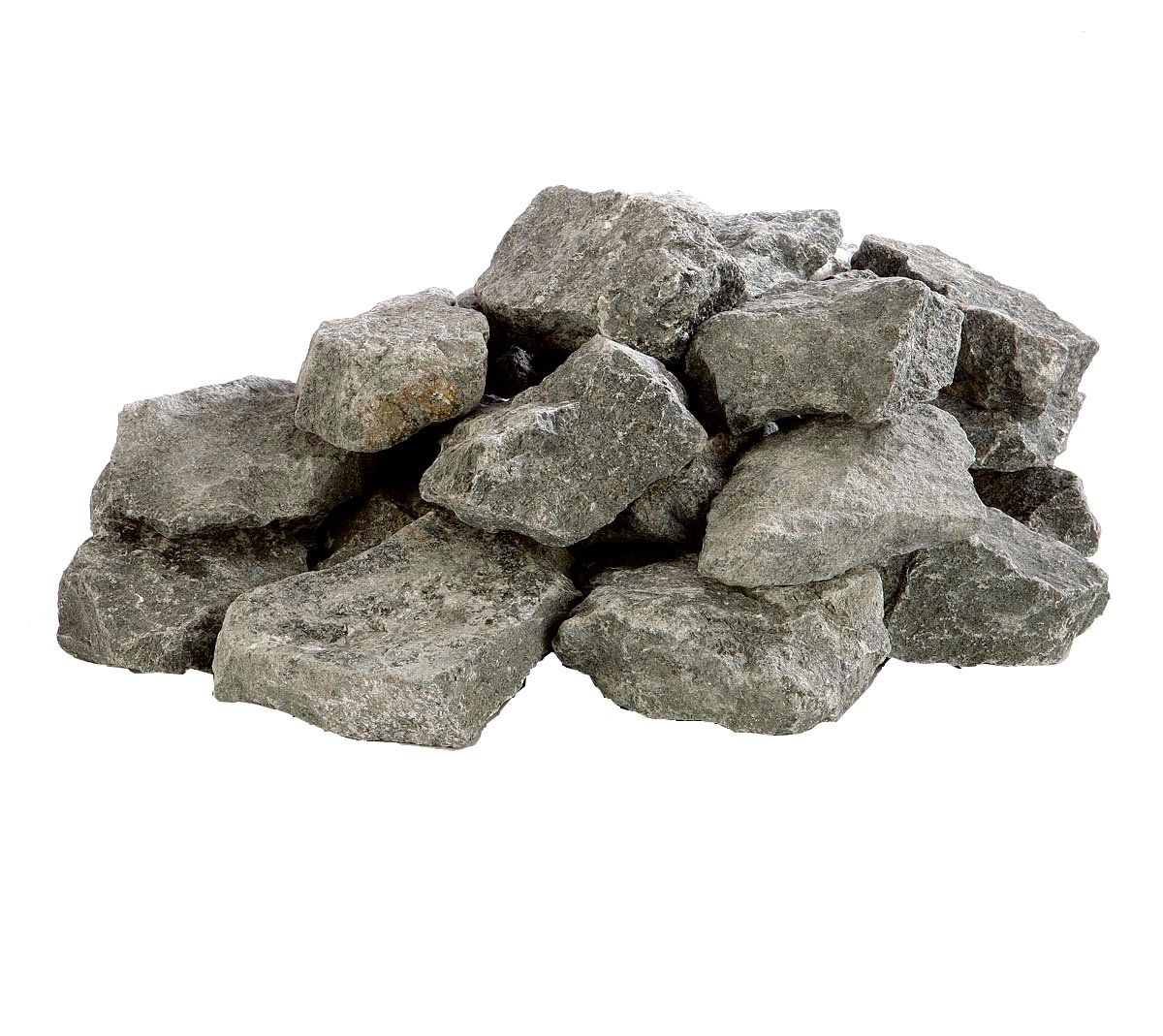

Infusion stones
made of extremely durable and robust diabase, up to fist sized stones. Depending on use but at least 1 time a year the stones should be controlled and stones with cracks as well as broken stones or stones, with heavy residues of calc and scents should be replaced
Unwashed, approx. 10 kg in a carton
art. no. 83500
needs to be washed before first use
Unwashed, other quantities
art. no. 83501
if interested, please inquire with your desired quantity, needs to the washed before first use
Washed, approx. 10 kg in a carton
art. no. 83502
the stones are already clean washed, so that they can be layed on the sauna heater immediately

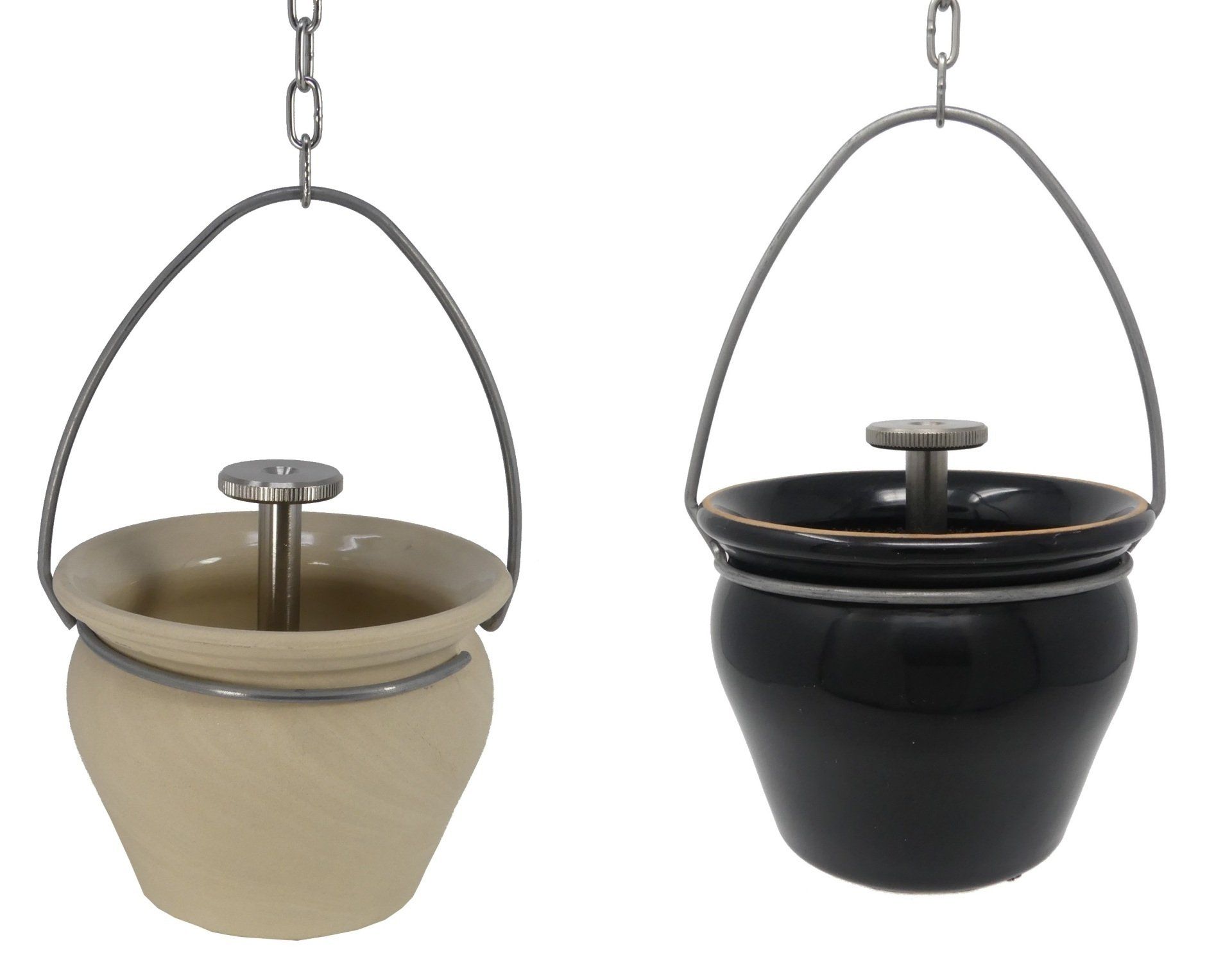

Infusion pots
with stepless adjustable drop valve to hang up directly above the sauna heater with the included chain 1 m and ceiling hook made of stainless steel. The steady supply of water (if desired with scent) on the hot infusion stones creates a plesant sauna climate through a constantly increased air humidity.
Max. content approx. 300 ml
dim. ceramic pot: ø approx. 115 mm, height approx. 82 mm
total height with bracket approx. 170 mm
weight approx. 590 g
Pot made of sand-beige grained ceramic, inside colourlessly varnished
art. no. 849882
Pot made of ceramic with burned in black glaze on the outside and inside
art. no. 849885
the upper edge and the bottom are due to production reasons unglazed in sand-beige colour

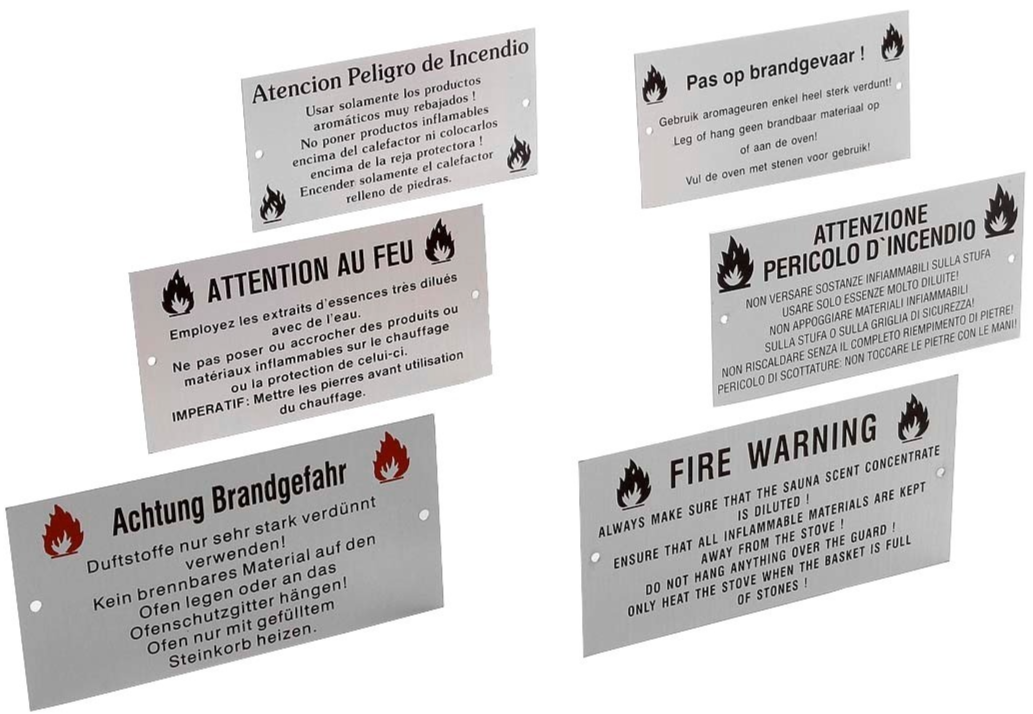

Warning signs made of aluminium
art. no. 85751-85799
installation above the sauna heater at the inner sauna wall, meets the requirements of the VDE-regulation for saunas. In German printed with 2 colours - other languages printed with 1 colour
dim.: WxHxD approx. 100x50x0.5 mm
weight approx. 7 g
German „Achtung Brandgefahr“
art. no. 85751
English „FIRE WARNING“
art. no. 8577
French „ATTENTION AU FEU“
art. no. 8578
Italian „ATTENZIONE PERICOLO D’INCENDIO“
art. no. 8579
Spanish „Attencion Peligro de incendio“
art. no. 85791
Dutch „pas ob brandgevaar!“
art. no. 85792
Other languages are available on request
art. no. 85799
