Audio, salt stones, isolation and ventilation

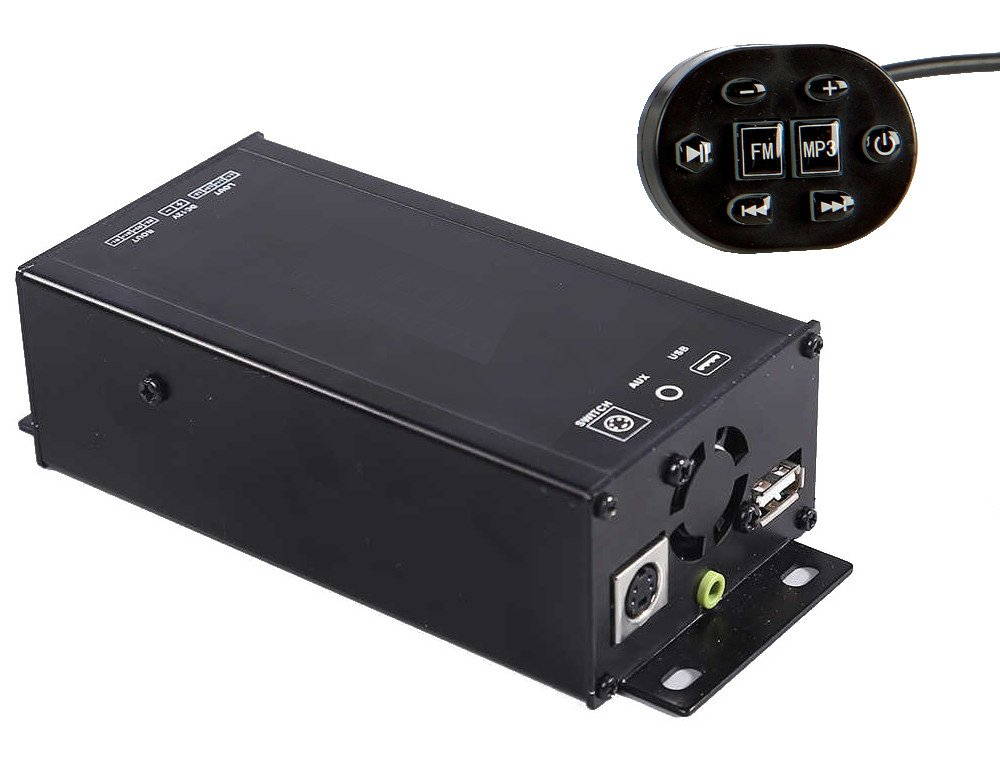

MP3-radio with Bluetooth
art. no. 859501
IP66 water-protected control panel usable in sauna and steam bath room up to max. temperature 90 °C for controlling the MP3-radio, with switching key between Bluetooth-, Radio-, USB- or AUX-operation, volume control, track or radio-channel selection, On/Off-switch. At the main unit with fan (for mounting outside of the sauna/steam bath room) there is no control panel. Incl. plug in power supply 100-240 V~50-60 Hz and all connection cables with matching plugs for speakers art. nos. 85964-85977, suitable for max. connection of 4 loudspeakers with each 35 W dim.: main unit: WxHxD approx. 145x40x65 mm
dim.: control panel: WxHxD approx. 51x39x17 mm
weight approx. 900 g

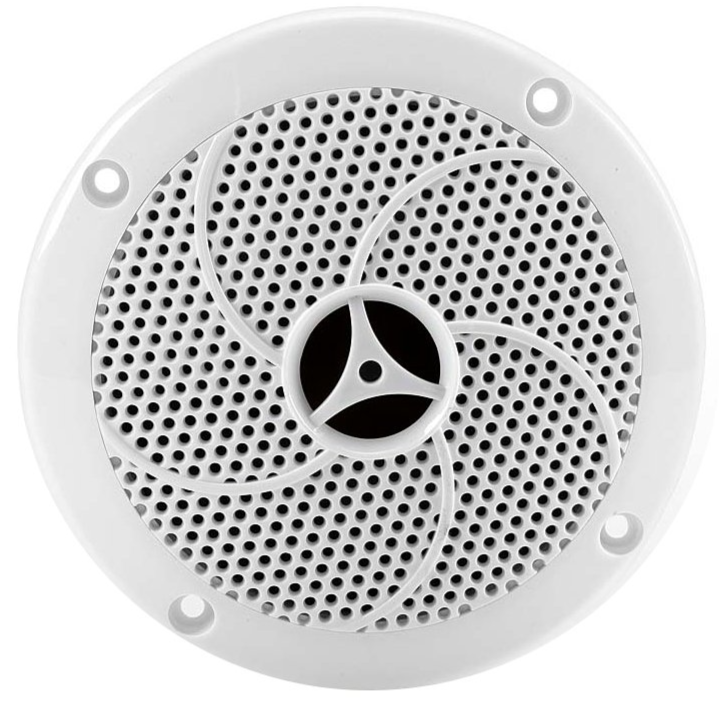

Loudspeakers white
for sauna, steam bath and infrared cabin, IP55 water-protected as well as salt water resis- tant, max. capacity 20 watt, 8 ohm, cover screen: ø approx. 135 mm, cut out: ø approx. 100 mm, depth approx. 46 mm
weight approx. 480 g
Suitable up to max. 120 °C
art. no. 85964
Suitable up to max. 70 °C
art. no. 85967

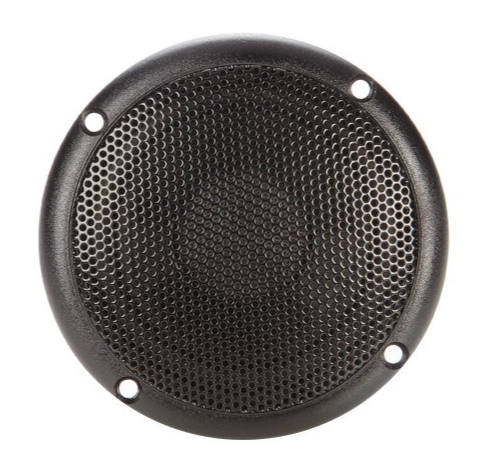

Loudspeakers black suitable up to max. 120 °C
art. no. 85970
for sauna, steam bath and infrared cabin, IP55 water-protected as well as salt water resis- tant, max. capacity 20 watt, 8 ohm, cover screen: ø approx. 90 mm, cut out: ø approx. 73 mm, depth approx. 37 mm
weight approx. 265 g

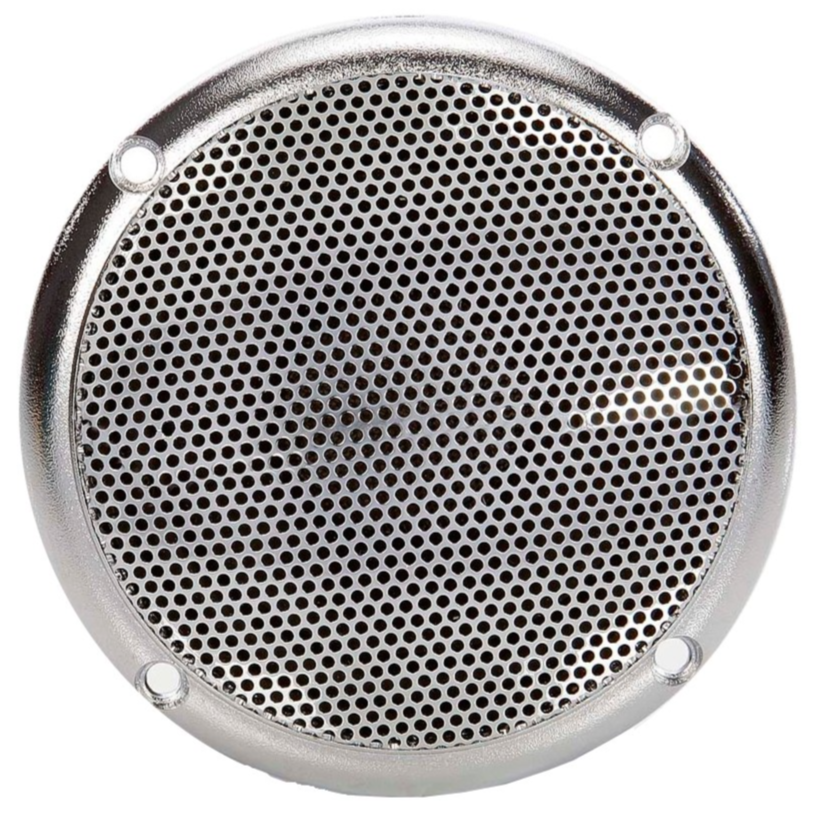

Loudspeakers silver suitable up to max. 120 °C
art. no. 85975
for sauna, steam bath and infrared cabin, IP55 water-protected as well as salt water resis- tant, max. capacity 20 watt, 8 ohm, cover screen: ø approx. 90 mm, cut out: ø approx. 73 mm, depth approx. 37 mm
weight approx. 265 g

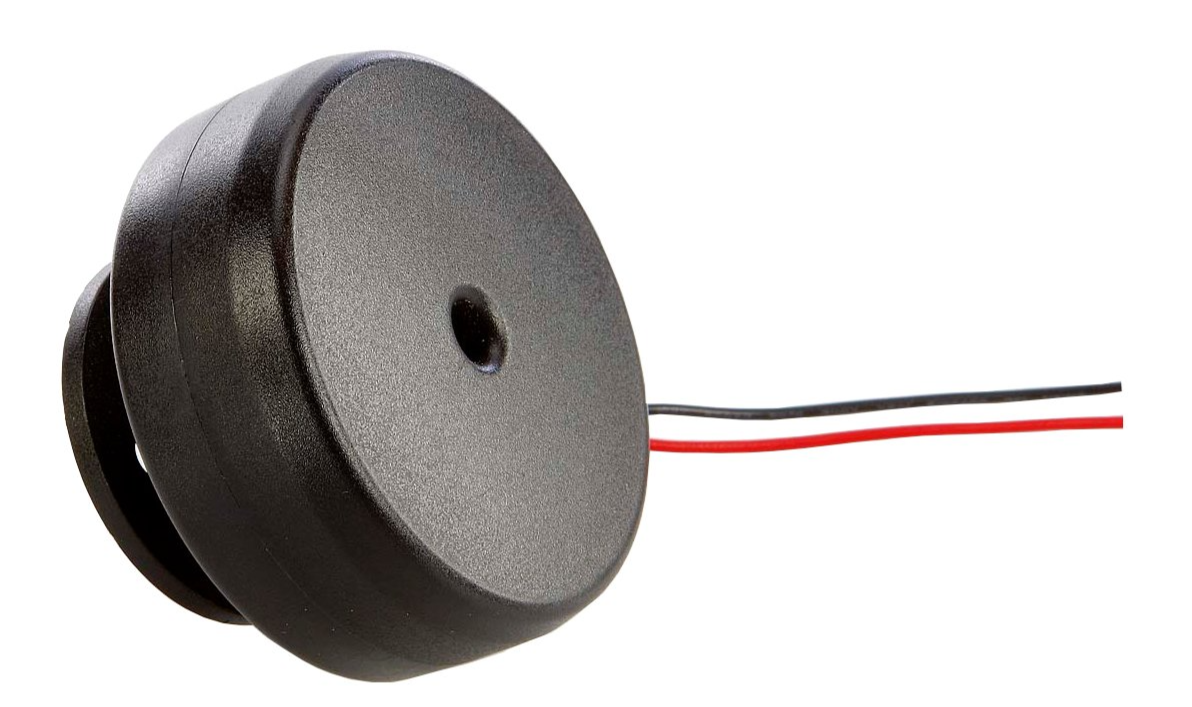

Transducer 20 Watt
art. no. 85977
uses surface capable of vibrating (e. g. wooden walls) for music and speech reproduction, as no stereo effect can be achieved 1 piece is sufficient for smaller cabins. Easy and quick installation because it is screwed on from the outside of the cabin wall/ceiling. Incl. 5 m connection cable with flat pins for connection to the audio system, IP68 water-protected, 8 ohm
dim.: ø approx. 60 mm
height incl. mounting plate approx. 36 mm
weight approx. 285 g

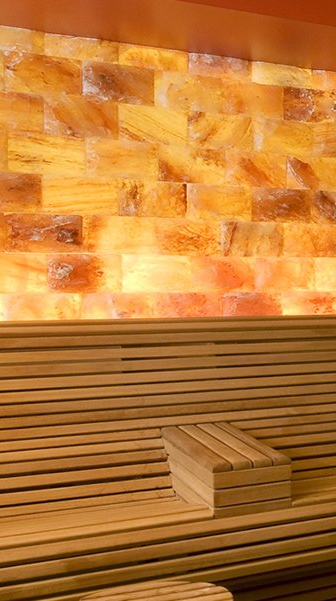

Salt stones approx. 20x9.7x5 cm with a smooth visible side
art. no. 8530
with a groove on the long side for an invisible, easy and quick assembly without any glue - works well for back-lighting (suitable lighting is available on request); incl. complete fastening material with transparent Plexiglas stripes and aluminium profiles. Usable up to 120 °C and max. 40 % relative humidity, country of origin Pakistan. Please mind that if you want us to cut the salt stones to the half of the width, which is necessary for the shifted construction of the salt bricks, that this causes you additional formatting costs - price for this on request (please send us your ideas - we will gladly make you a complete offer). For the intensification of the salt effect a nebulizer of a brine solution can be used (if you are interested, please ask us for more information). Salt enriches the air with negative ions and valuable minerals and creates a low in dust, emission and allergens micro-climate. It stimulates the wellbeing and increases the physical and intellectual performance.
Weight approx. 125 kg/m²
Salt stones in other options
art. no. 85301
with natural surface, salt stones in white colour, without a groove on the long side or corner and wall connection stones as well as closed elements for wet areas are available on request

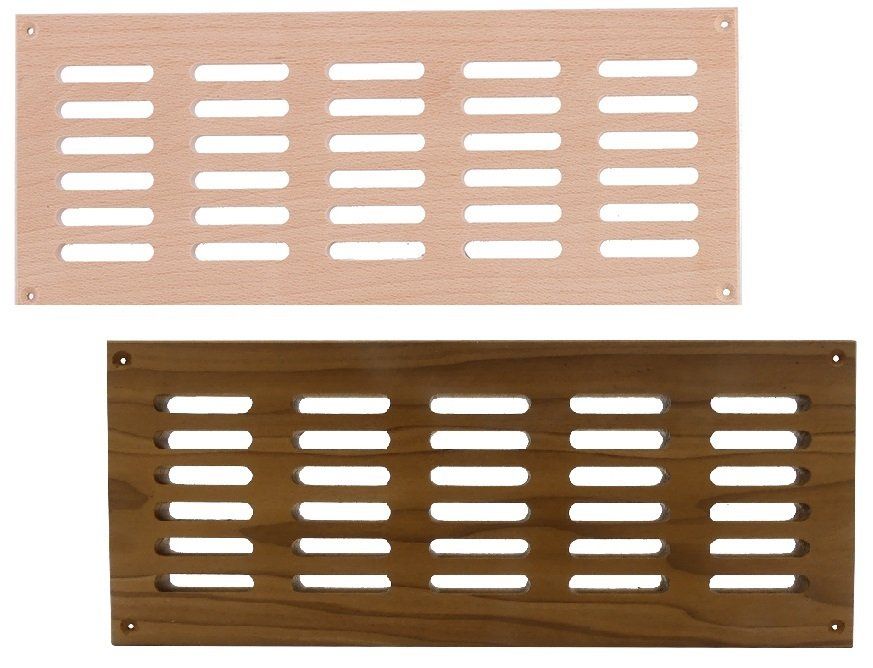

Wooden ventilation grilles
Big for air passage approx. 100 cm²
installation dim.: WxHxD approx. 295x105x9 mm
exterior dim.: WxHxD approx. 315x130x17 mm
weight approx. 275 g
Made of bright wood
art. no. 85733
Made of dark-brown thermo-wood
art. no. 85736
Small for air passage approx. 40 cm²
art. no. 85741
installation dim.: WxHxD approx. 120x105x9 mm
exterior dim.: WxHxD approx. 140x130x17 mm
weight approx. 115 g
Wooden ventilation slider
art. no. 85701
frame made of bright pine wood with movable slider made of plywood. Made of dark-brown thermo-wood is available on request. Max. ventilation size.: approx. 165x70 mm
dim.: WxHxD approx. 390x130x20 mm
weight approx. 230 g
Wooden ventilation slider made of dark-brown thermo-wood
art. no. 85706
frame with movable slider made of thermo-wood.
Max. ventilation size.: approx. 165x90 mm
dim.: WxHxD approx. 370x130x30 mm
weight approx. 220 g
Screw-on ventilation fan IP55 water-protected for sauna
suitable for commercial sauna up to 17 m³ room size - air performance approx. 178 m³/h, for bigger sauna rooms several ventilation fans can be used parallel operated, with ball-bearing, suitable surrounding temperature -40 °C up to +80 °C, 230 V/50 Hz, 23 W. Suitable finger protection grille is available on request. dim.: WxHxD approx. 120x120x38 mm
weight approx. 480 g
With 2 pins 2.8x0.5 mm
art. no. 85904
suitable connection cable with plugs is available on request
With approx. 30 cm connection cables
art. no. 85905
Screw-on ventilation fan IP68 water-protected for steam bath
art. no. 85908
suitable for commercial steam bath rooms up to 10 m³ room size – air performance approx. 107 m³/h, for bigger steam bath rooms several ventilation fans can be used parallel operated, with approx. 30 cm connection cables, with ball-bearing, suitable surrounding temperature -10 °C up to +70 °C, 230 V/50 Hz, 23 W. Suitable finger-protection grilles made of stainless steel or plastic are available on request.
Dim.: WxHxD approx. 119x119x38 mm
weight approx. 520 g

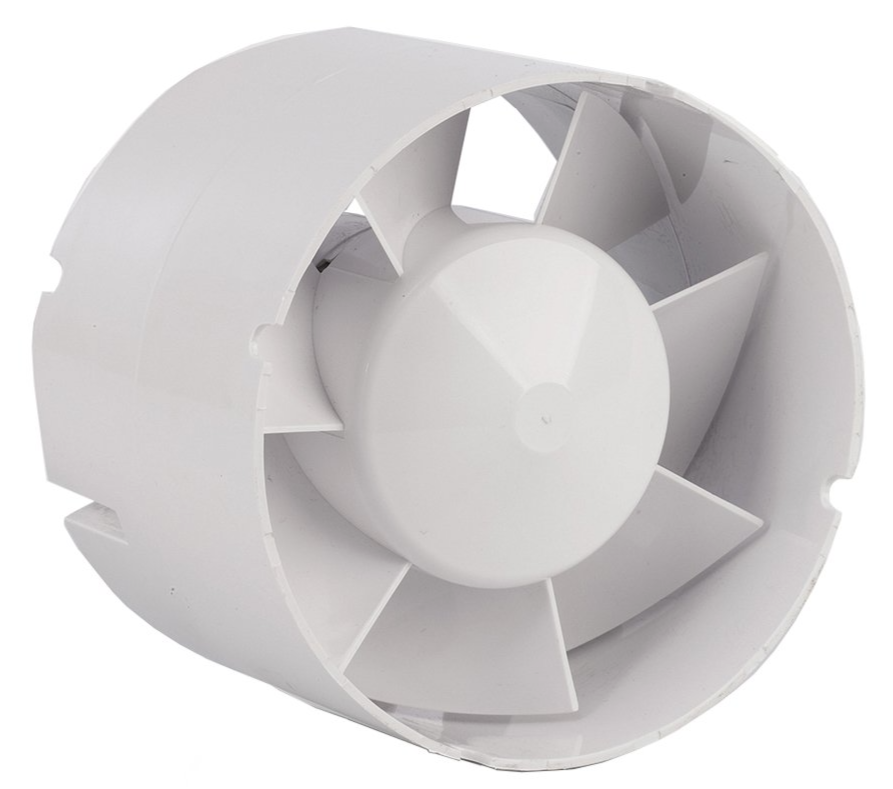

Pipe inserted ventilation fan
IPX4 water-protected, permissible ambient temperature: 0 °C up to +45 °C, max. temperature of air flow 60 °C, 220-240 V/50 Hz, length approx. 115 mm
For pipe Ø 125 mm
art. no. 85910
suitable for commercial sauna up to approx. 19 m³ room size - air performance approx. 195 m³/h, 16 W, weight approx. 500 g
For pipe Ø 100 mm
art. no. 85913
suitable for commercial sauna up to approx. 10 m³ room size - air performance approx. 102 m³/h, 14 W, weight approx. 490 g
For pipe Ø 150 mm is available on request

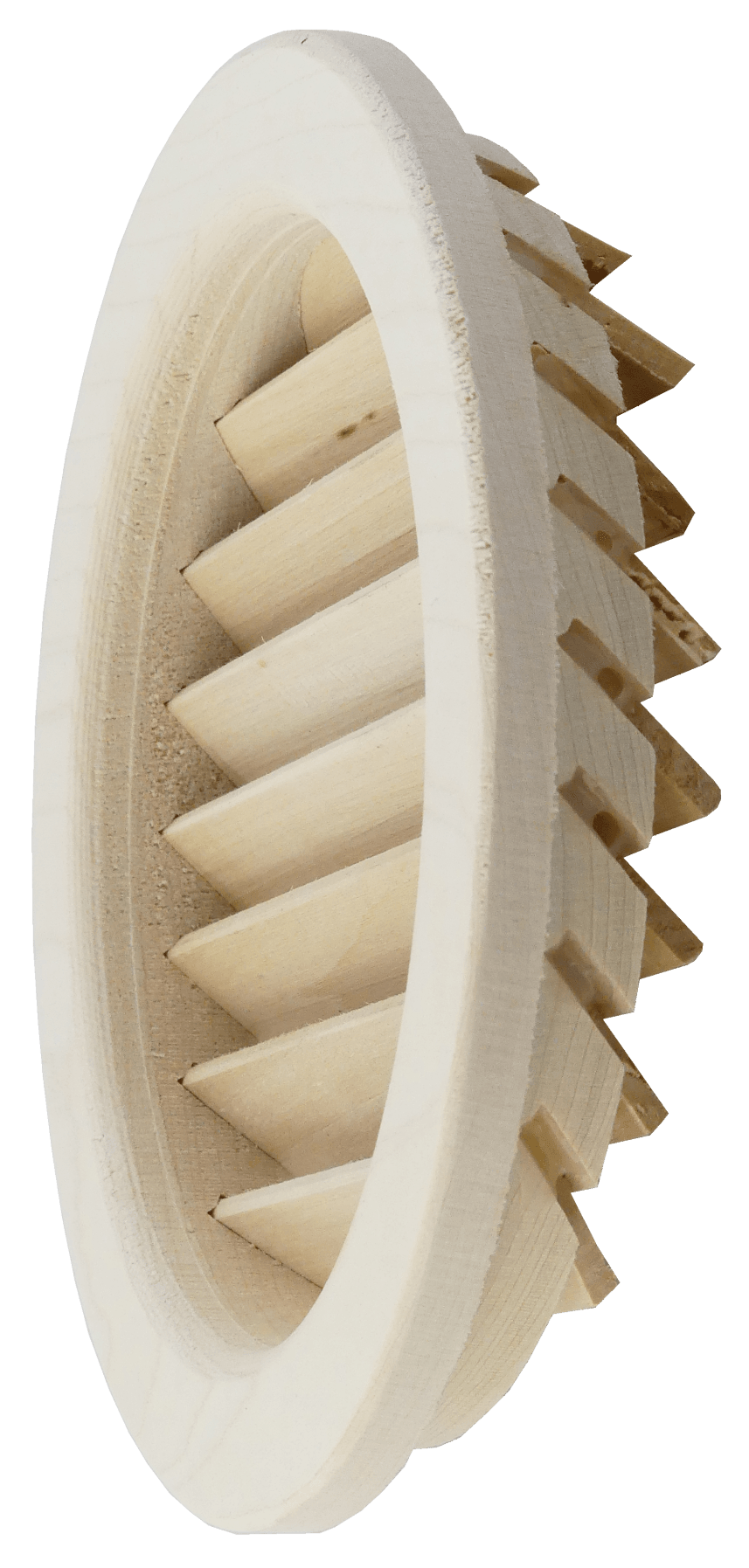

Wooden ventilation grill round
art. no. 85720
prevents by diagonal inserted wooden stripes the seeing through, for an air passage of approx. 45 cm², installation dim.: approx. Ø 124 mm (suitable hole saw attachment Ø 127 mm is available on request), depth approx. 13 mm, exterior dim.: Ø approx. 139 mm, depth approx. 19 mm
weight approx. 70 g

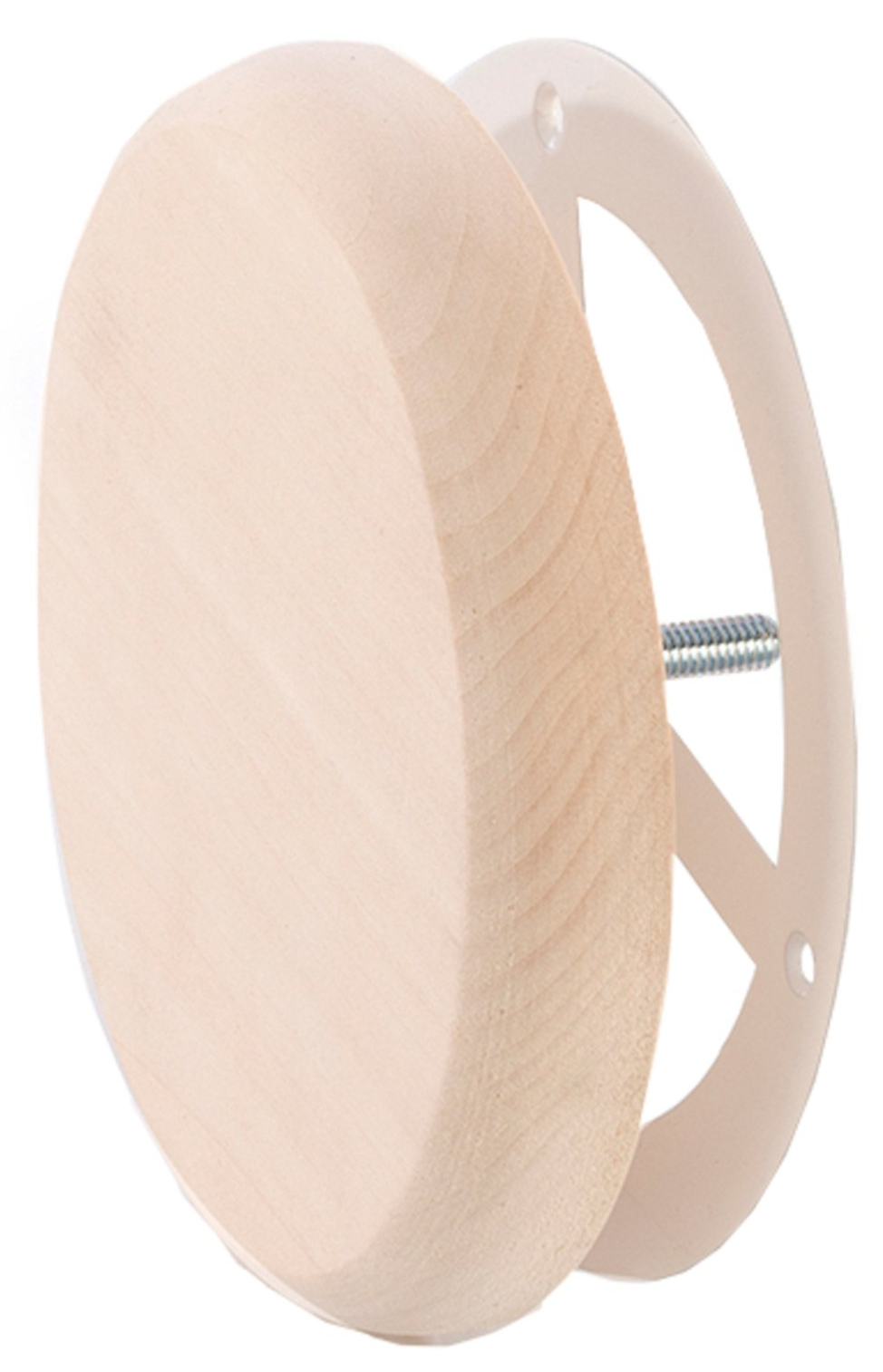

Ventilation valve with bright wooden cover
art. no. 85711
air passage is adjustable via screw (length approx. 38 mm), screwed on easily from above, colour-coated metal frame. Wooden cover made of dark-brown thermo-wood is available on request
interior dim.: approx. 90 mm
exterior dim.: approx. 125 mm
weight approx. 215 g
Aluminium self-adhesive tape rolls 50 m, width 50 mm
for glueing of steam blocking aluminium foils art. nos. 85402/ 85422, adhesive force 50 N/25 mm, aluminium-foil thickness approx. 0.03 mm
weight approx. 550 g
Temperature resistant from -35 °C up to +80 °C
art. no. 85441
Temperature resistant from -35 °C up to +150 °C
art. no. 85455

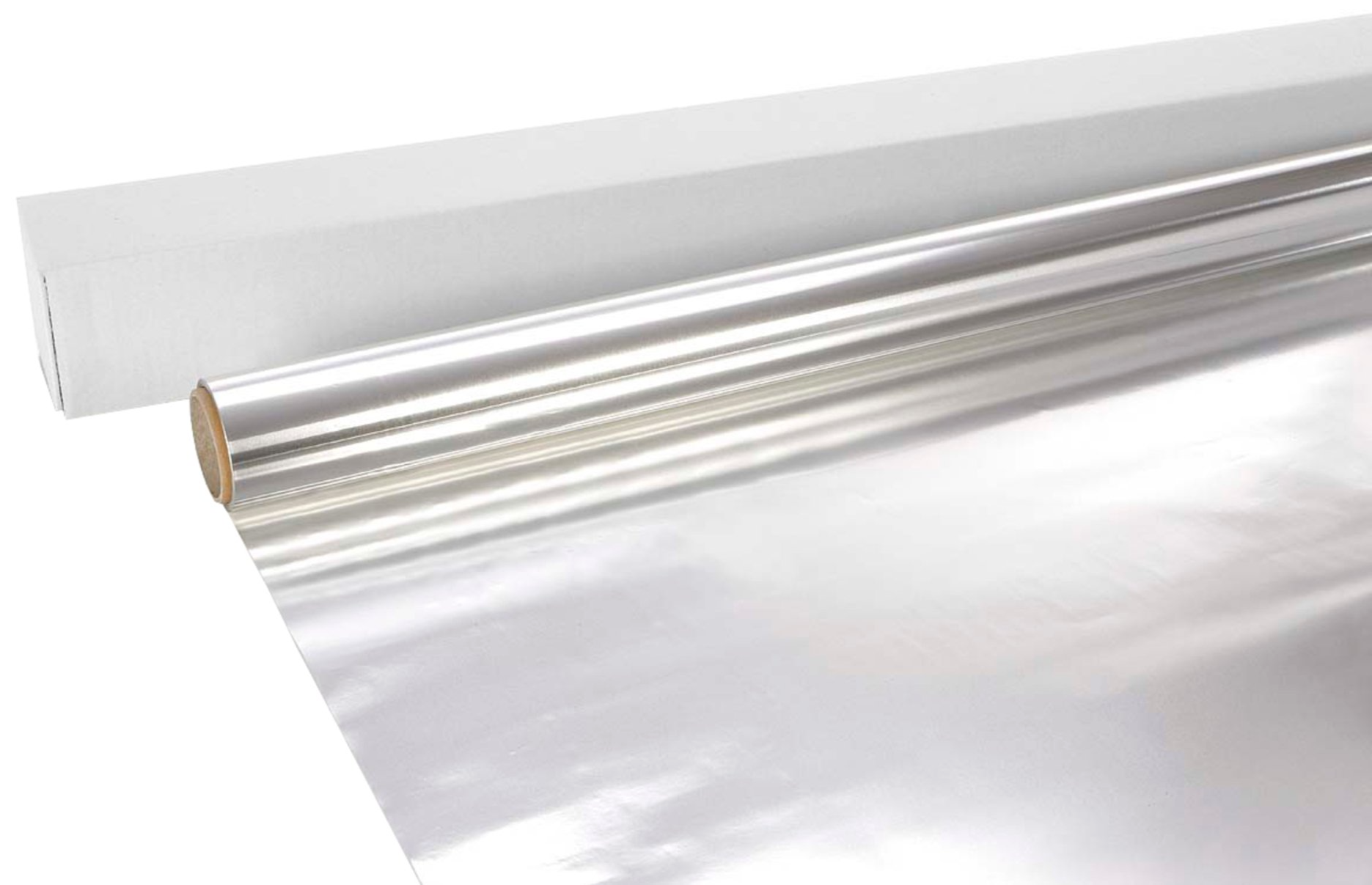

Aluminium-foil width 1 m
with the installation of the aluminium-foil as a steam barrier, walls and ceilings of commercial and private cabins are reliable protected against moisture penetration, thickness approx. 0.03 mm
Roll length 25 m
art. no. 85402
weight approx. 2.4 kg
Roll length 100 m
art. no. 85422
weight approx. 8 kg

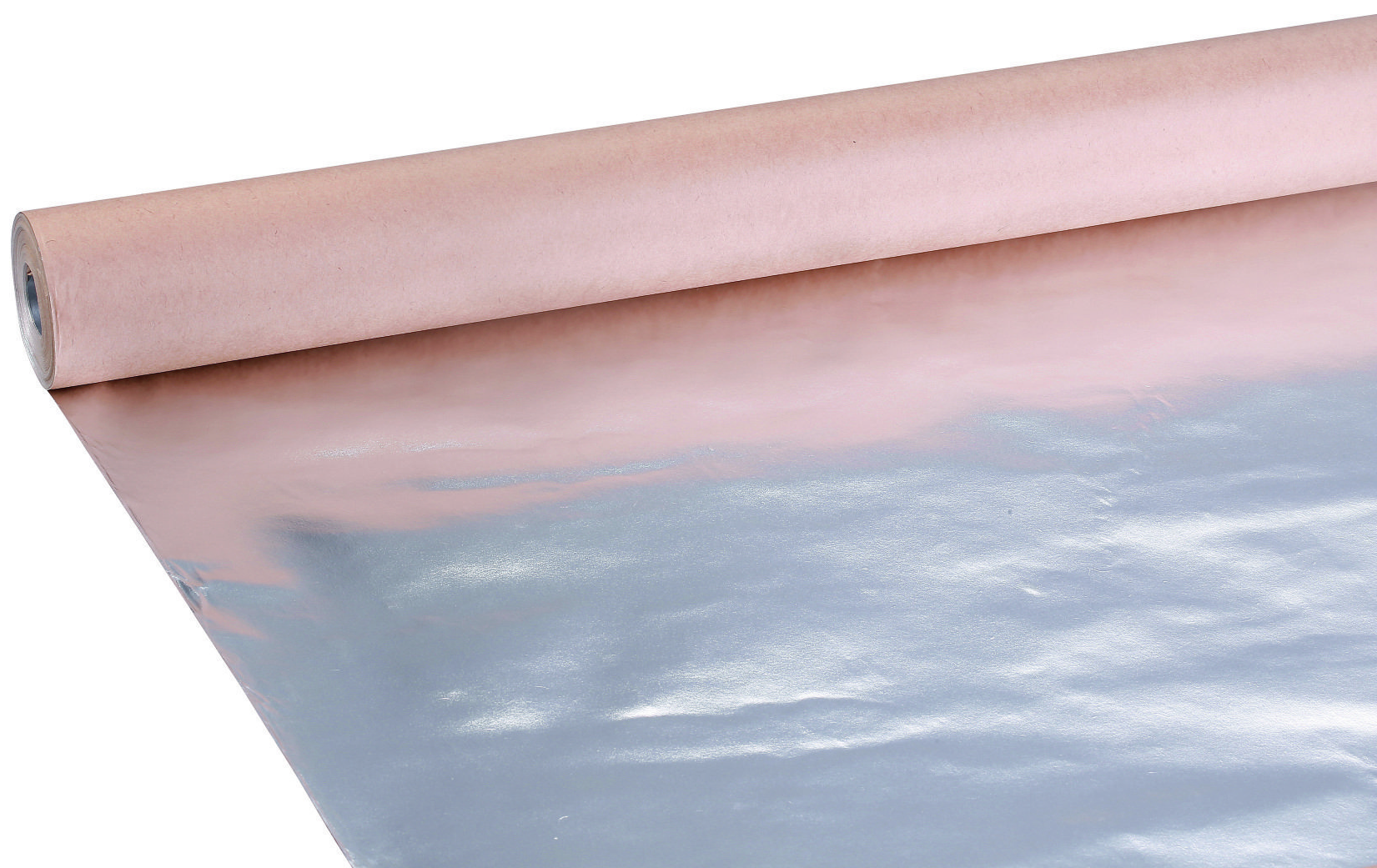

Aluminium-paper combined foil width 1.25 m
art. no. 8543
temperature resistant up to 140 °C, aluminium-foil with laminated rear side made of paper with PE, very tear resistant, roll length 24 m (other roll length are available on request), thickness approx. 0.14 mm
weight approx. 2.9 kg
