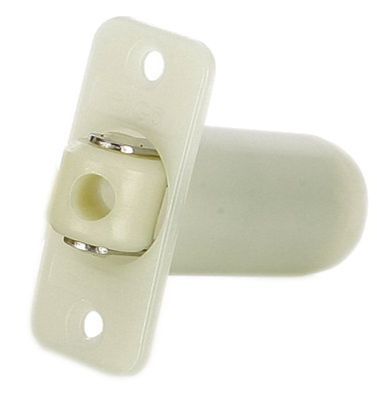

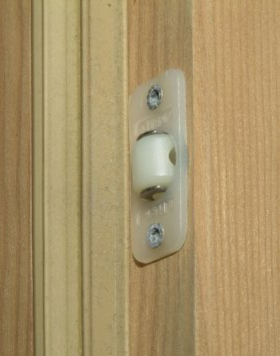

Roller catches for glass doors

with height adjustable closing roll (during the first installation the height of the roll has to be adjusted to the glass door with the slotted screw so that the door can be opened and closed easily), roll and casing are made of durable and silent spe- cial plastic - suitable for permanent temperatures up to 120 °C, all metal parts are made of stainless steel so they are also ideal suitable for steam bath doors, needed drill hole Ø 16 mm - drill hole depth 30 mm, screw-on plate dim.: WxHxD approx. 35x16x2 mm,

weight approx. 10 g

Roller catches approx. 30 N (approx. 3 kg spring closing pressure) for glass doors use 2 pcs.

Colour milky-cloudy

art. no. 85090

Colour black

art. no. 850905

Roller catches approx. 60 N (approx. 6 kg spring closing pressure) for glass doors 1 pc. is sufficient

Colour milky-cloudy

art. no. 85095

Colour black

art. no. 850955

Roller catches approx. 90 N (approx. 9 kg spring closing pressure) for glass doors 1 pc. Is sufficient

Colour milky-cloudy

art. no. 85096

Colour black

art. no. 850965

Locking latch for wooden doors

art.-Nr. 850980

made of zinc die-casting, when using roller catches with 30 N or 60 N we recommend you to use 2 pcs./door, for roller catches with 90 N is 1 pc./door sufficient,

dim.: WxHxD approx. 20x45x8 mm, weight approx. 30 g

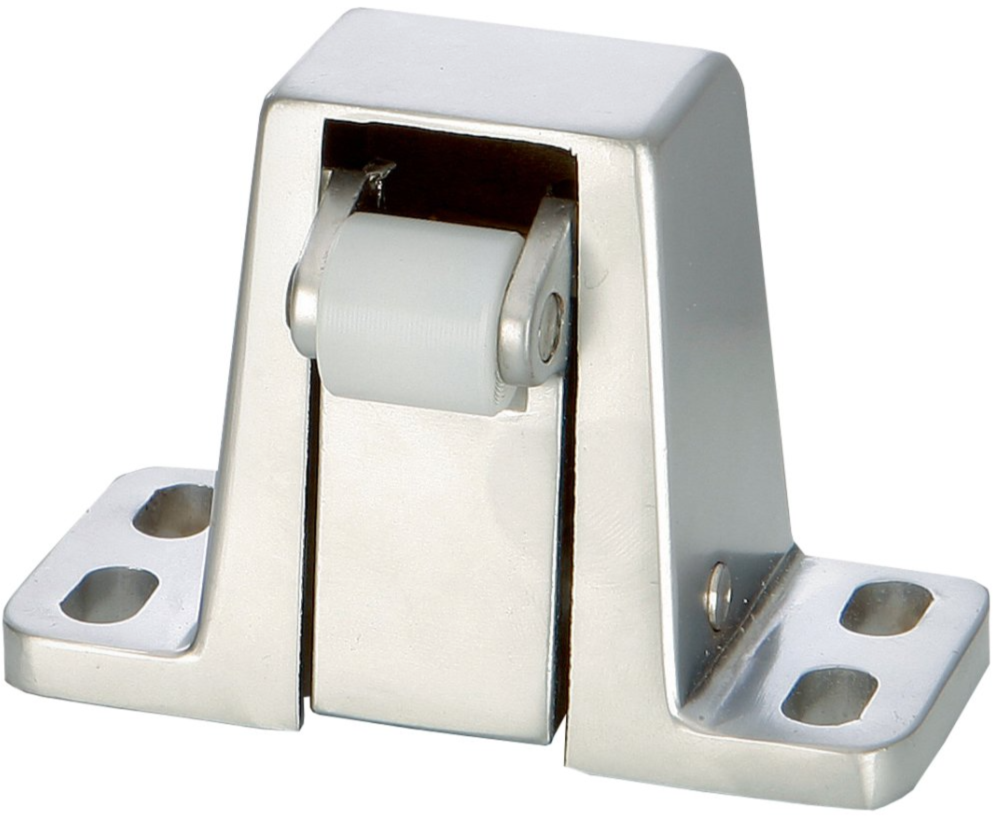

Roll closure

spring closing pressure approx. 130-150 N (approx. 13-15 kg), case made of zinc die-casting, spring and fastening pins are made of stainless steel, height of locking latch approx. 35 mm, suitable for door handle art. no. 85101,

dim.: WxHxD approx. 85x59x40 mm,

weight approx. 295 g

Colour brown

art. no. 85005

Colour white

art. no. 85008

Colour high-polished chrome

art. no. 85015

Colour matt-chrome

art. no. 85018

Magnet with drill-in thread pin incl. U-adhesion sheet

magnet in nickel-plated hexagonal casing with drill-in threaded pin M6x22 mm, total height 28 mm; incl. nickel-plated U-adhesion sheet (easy installation - only clip U-adhesion sheet at the glass door), dim. U-adhesion sheet: HxW approx. 35x27 mm

Magnet with magnetic force approx. 95 N

art. no. 8506

(approx. 9.5 kg) in hexagonal casing 15 mm; incl. U-adhesion sheet for glass panes 8 mm, weight approx. 28 g

Magnet with magnetic force approx. 95 N

art. no. 85061

(approx. 9.5 kg) in hexagonal casing 15 mm; incl. U-adhesion sheet for glass panes 6 mm, weight approx. 28 g

Magnet with magnetic force approx. 95 N

art. no. 85063

(approx. 9.5 kg) in hexagonal casing 15 mm; incl. U-adhesion sheet for glass panes 10 mm, weight approx. 28 g

Magnet with magnetic force approx. 160 N

art. no. 8508

(approx. 16 kg) in hexagonal casing 22 mm; incl. U-adhesion sheet for glass panes 8 mm, weight approx. 42 g

Magnet with magnetic force approx. 160 N

art. no. 85083

(approx. 16 kg) in hexagonal casing 22 mm; incl. U-adhesion sheet for glass panes 10 mm, weight approx. 42 g

Magnet with magnetic force approx. 160 N

art. no. 85085

(approx. 16 kg) in hexagonal casing 22 mm; incl. U-adhesion sheet for glass panes 6 mm, weight approx. 42 g

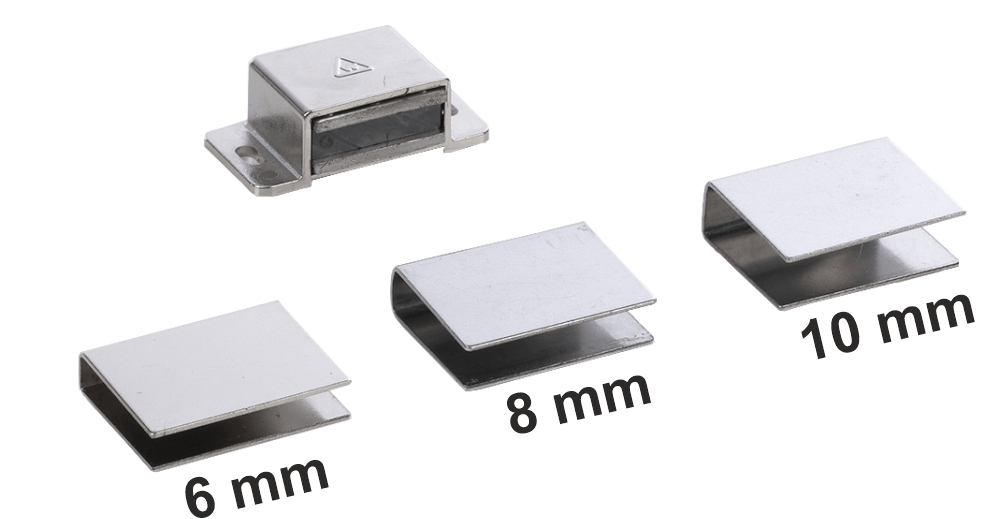

Magnet for screw on incl. U-adhesion sheet

magnet with magnetic force approx. 80 N (approx. 8 kg) (other magnetic forces are avialable on request) in a nickel-plated metal casing for screw on with slot-fastening for a simple adjustment of the magnetic force. Dim. magnet: WxHxD approx. 46x24x15 mm, incl. nickel-plated U-adhesion sheet (easy installation - only clip U-adhesion sheet at the glass door).

Dim. U-adhesion sheet: HxW approx. 35x27 mm

total weight approx. 75 g

Incl. U-adhesion sheet for glass door thickness 8 mm

art. no. 85087

Incl. U-adhesion sheet for glass door thickness 6 mm

art. no. 85088

Incl. U-adhesion sheet for glass door thickness 10 mm

art. no. 85089

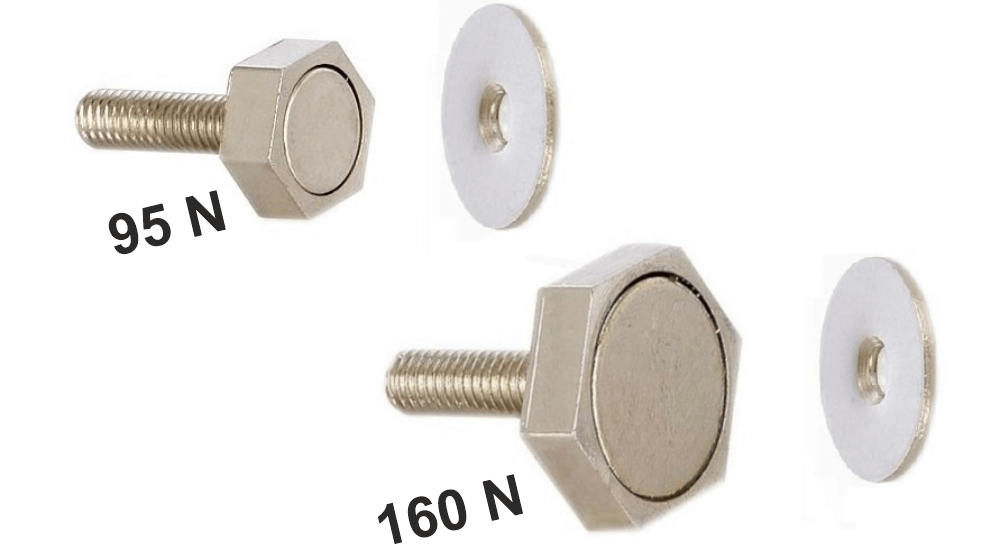

Magnet with drill-in thread pin incl. round adhesion sheet with drill hole

magnet in nickel-plated hexagonal casing with drill-in thread pin M6x22 mm, total height approx. 28 mm; incl. nickel-plated, round adhesion sheet Ø 24x1.5 mm with drill hole for screw on

Magnet with magnetic force approx. 95 N (approx. 9.5 kg)

art. no. 85062

in hexagonal casing 15 mm weight approx. 16 g

Magnet with magnetic force approx. 160 N (approx. 16 kg)

art. no. 8507

in hexagonal casing 22 mm weight approx. 30 g

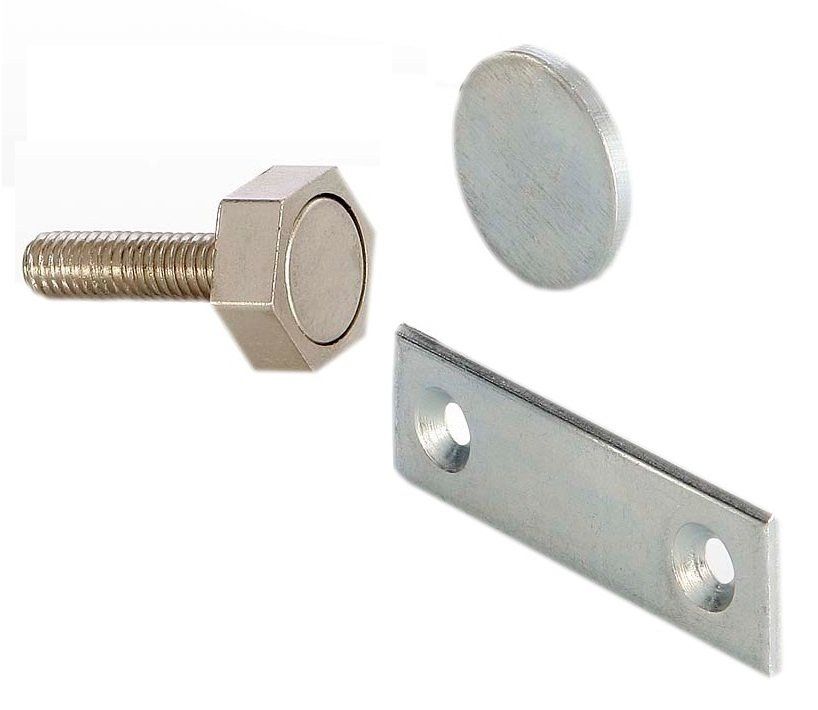

Magnet with drill-in thread pin incl. adhesion sheet

magnet with magnetic force approx. 95 N (approx. 9.5 kg) in nickel-plated hexagonal casing 15 mm with drill-in threaded pin M6x22 mm, total height approx. 28 mm, incl. galvanized

Round adhesion sheet Ø 20x2 mm

art. no. 85060

for glue on e. g. doors, weight approx. 15 g

Rectangular adhesion sheet with 2 drill holes

art. no. 85064

for screw on e. g. at wooden doors/windows, dim. adhesion sheet: HxWxD approx. 50x15x2 mm

weight approx. 20 g

Threaded sleeve for magnets

art. no. 85040

suitable for all magnets with drill-in thread pin with magnetic force approx. 95 N and approx. 160 N art. no. 8506-85085, for an easy regulation of the individually required height and therefore the force of the magnet by hand, a turned guide beginning simplifies the centric screw-ing e. g. into door knobs and handles. Made of galvanized steel, inside thread M6, outer diameter 12 mm, length approx. 18 mm, packet of 10 pcs., weight approx. 50 g

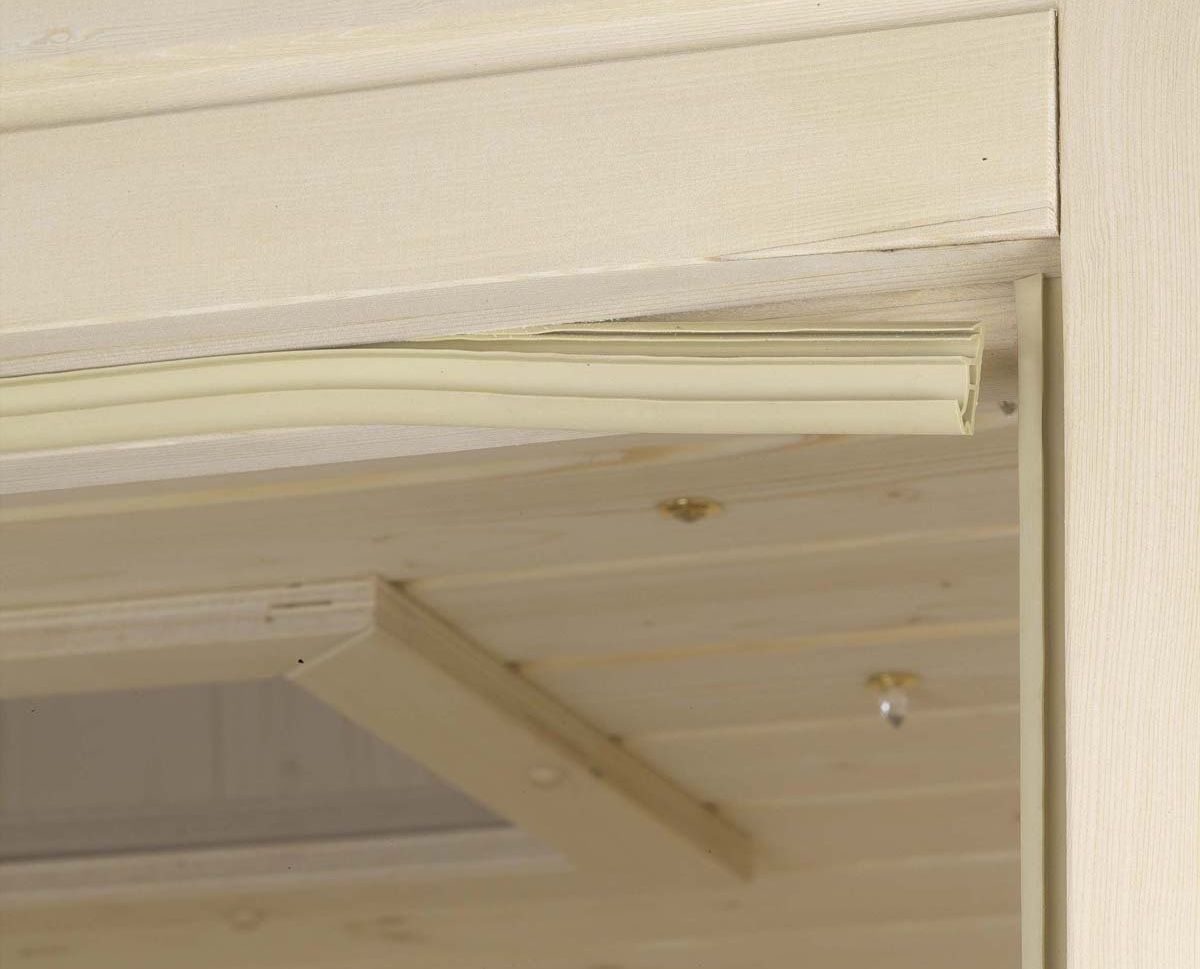

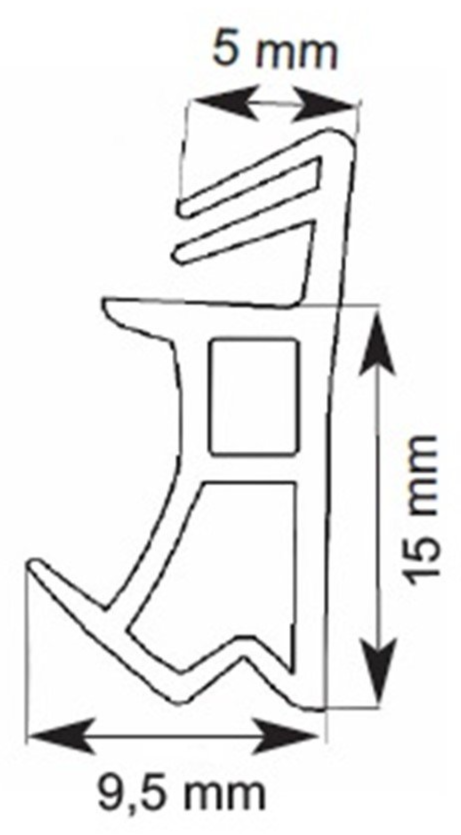

Door sealing beige for sauna- and steam bath cabins

art. no. 8505

suitable for door rabbet height 15 mm, groove width 5 mm, top width 9.5 mm. Made of -40 up to +120 °C durable resistant TPE-plastic, suitable for glass and wooden doors, UV-, weather, ozone-, salt water resistant. For larger order quantities we deliver each roll max. 50 m weight approx. 80 g/m

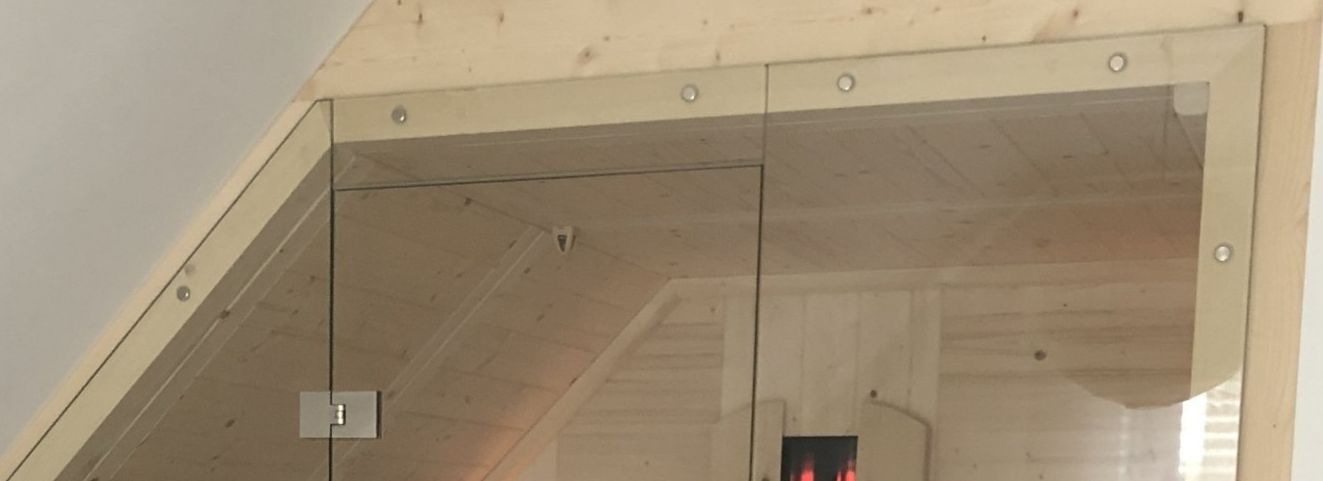

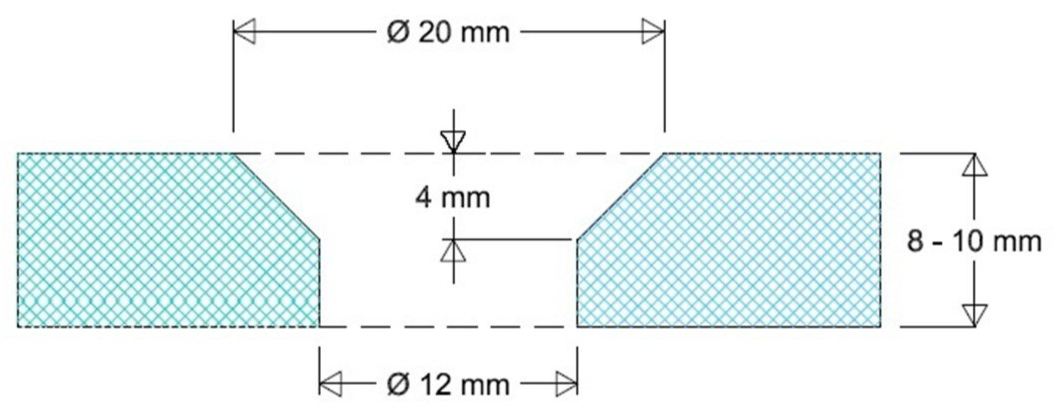

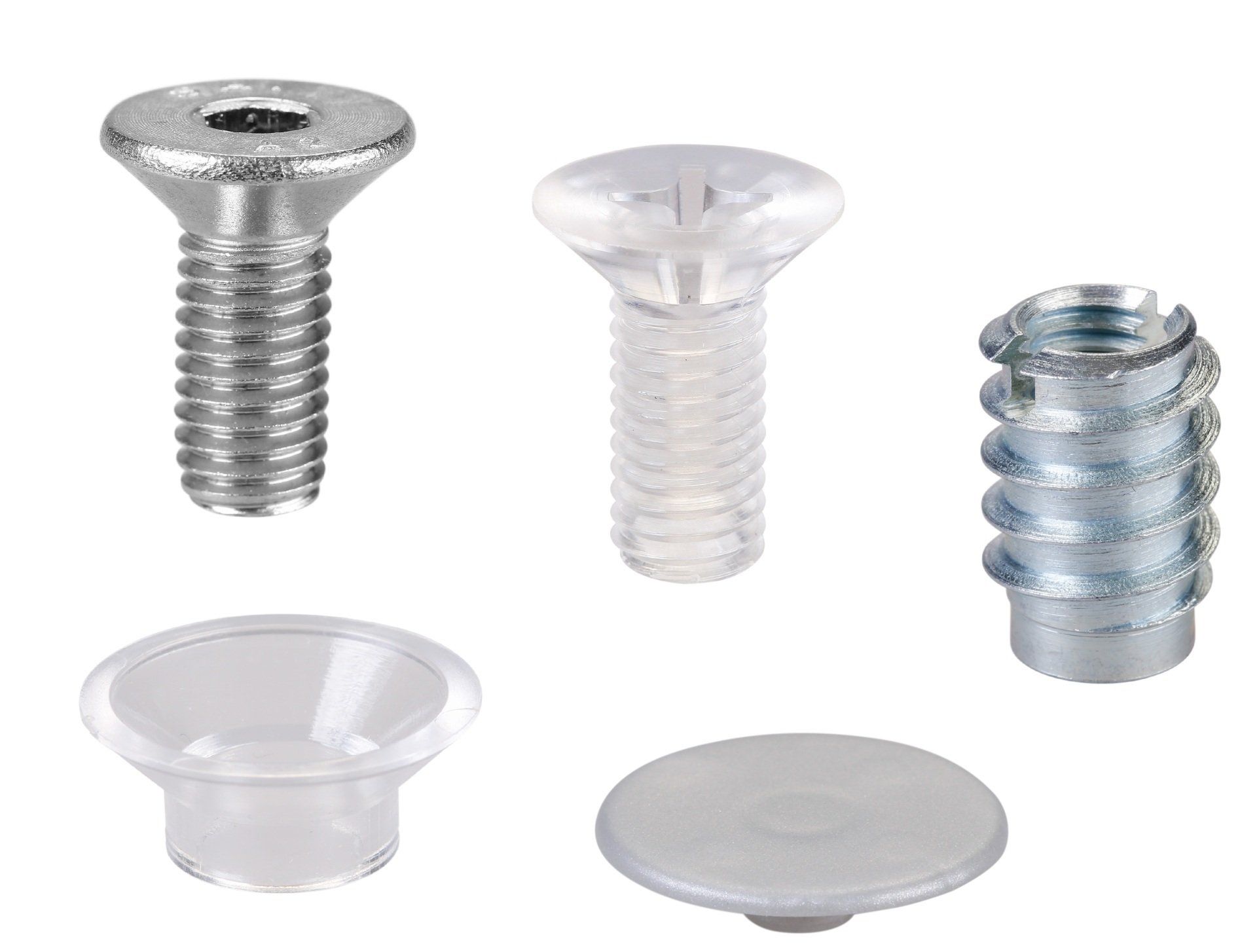

Glass insert made of transparent PC-plastic for sauna- and steam bath cabins

art. no. 85031

suitable for glass thicknesses 8-10 mm, suitable for a screw connection flush with the surface with M8-countersunk-screws made of transparent PC-plastic art. no. 85033 or made of stainless steel art. no. 85034. Dim. approx.: Ø top 19 mm, Ø bottom 11,3 mm, height 8 mm, package with 10 pieces,

weight approx. 5 g

Countersunk screws M8x20 mm suitable for the glass insert art. no. 85033

Made of transparent PC-plastic with cross slot

art. no. 85033

approx. 150 kg tensile load, packet with 10 pieces, weight approx. 10 g

Made of stainless steel with allen key

art. no. 85034

packet with 10 pieces, weight approx. 100 g

Cover cap made of silver-grey plastic

art. no. 85037

suitable for M8-countersunk-screw made of stainless steel art. no. 85034, packet with 10 pieces, weight approx. 5 g

Threaded sleeve M8x18 mm

art. no. 85038

made of galvanized steel, suitable for M8-countersunk-screw made of transparent PC-plastic art. no. 85033 or made of stainless steel art. no. 85034, packet with 10 pieces,

weight approx. 50 g
