Flood shower buckets/-showers, Kneipp-hoses and water valves
Wooden flood shower bucket with holder made from stainless steel
art. no. 87038
for wall or ceiling assembly
dim. holder WxHxD approx. 350x100x350 mm
weight approx. 5.7 kg

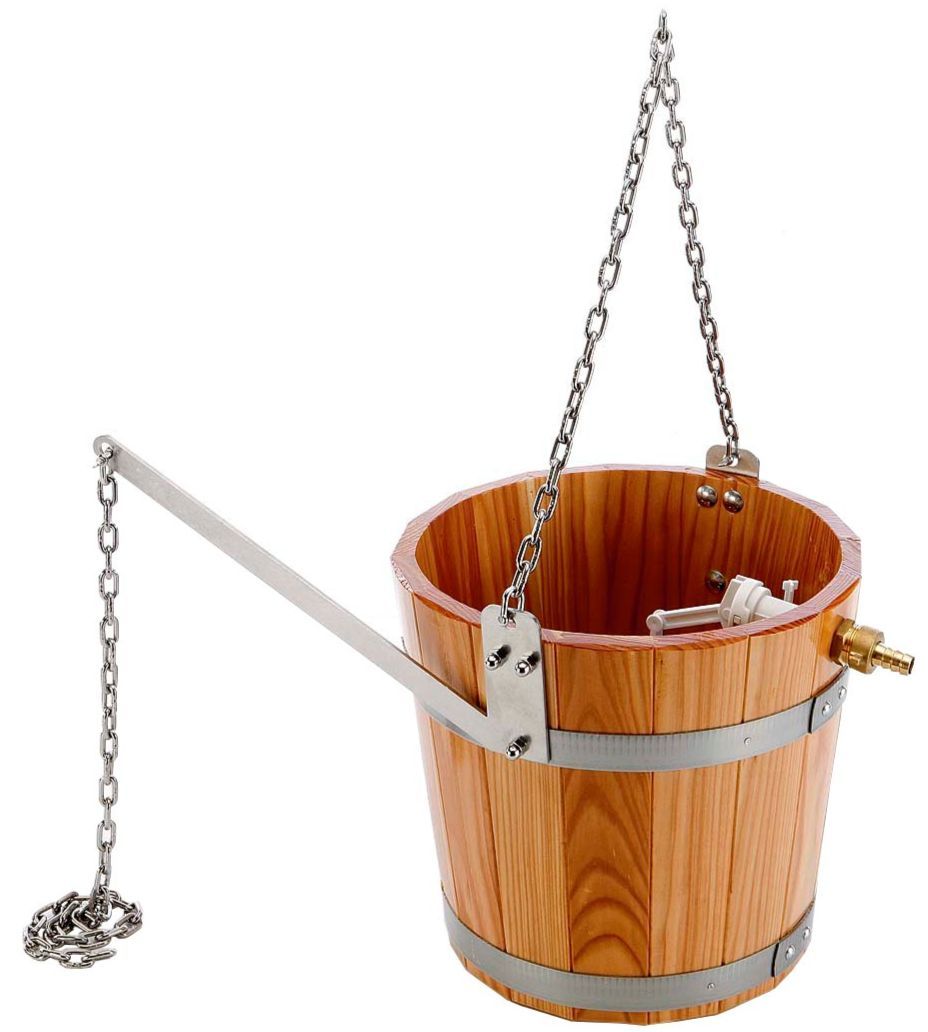

Wooden flood shower bucket with hanging chain
art. no. 87030
chain approx. 70 cm long made of stainless steel
for hanging on a ceiling hook
weight approx. 3.9 kg

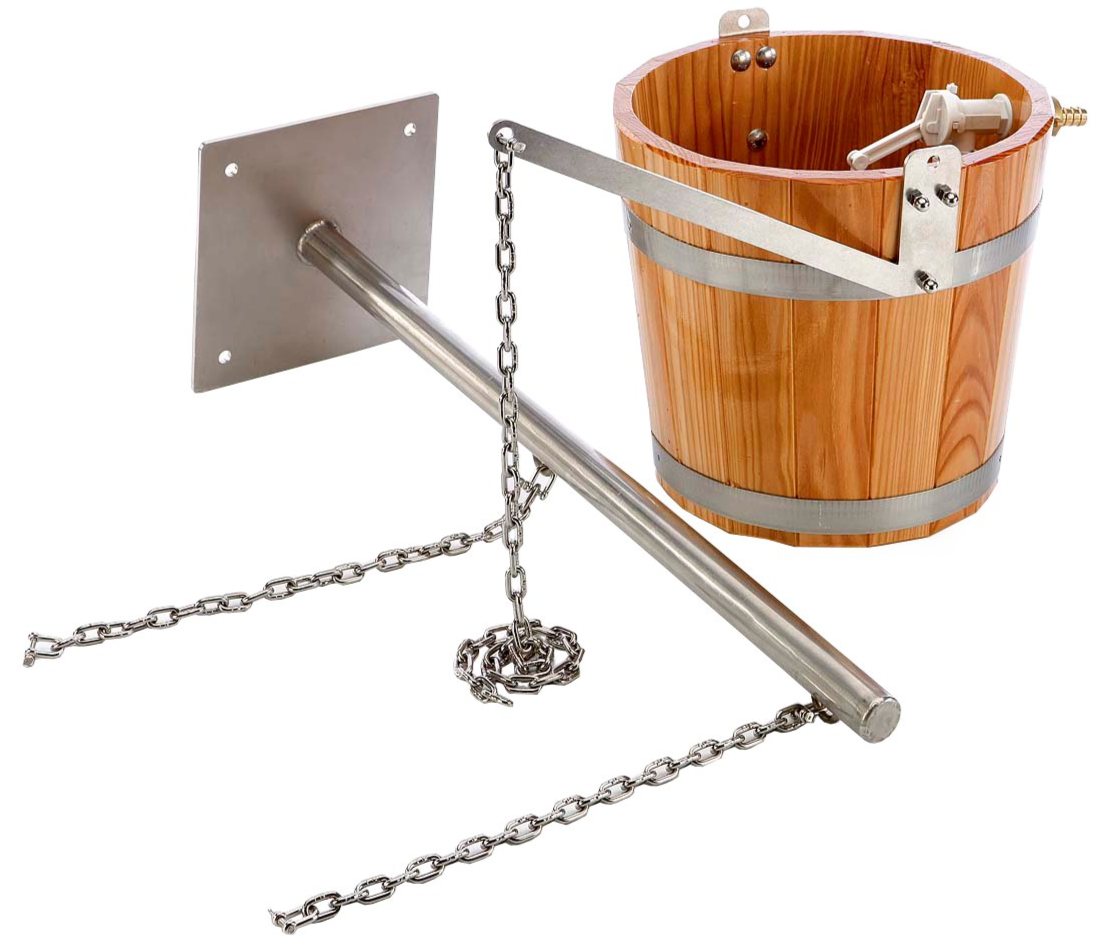

Wooden flood shower bucket with holder arm made from stainless steel
art. no. 87033
for wall assembly, incl. 2 hang up chains made from stainless steel each length approx. 35 cm, dim.: total length holder arm approx. 660 mm,
screw on plate WxHxD approx. 200x200x5 mm
weight approx. 6.7 kg
Flood shower bucket made of stainless steel with holder
art. no. 87039
for wall or ceiling assembly
dim. holder WxHxD approx. 350x100x350 mm
weight approx. 3.8 kg

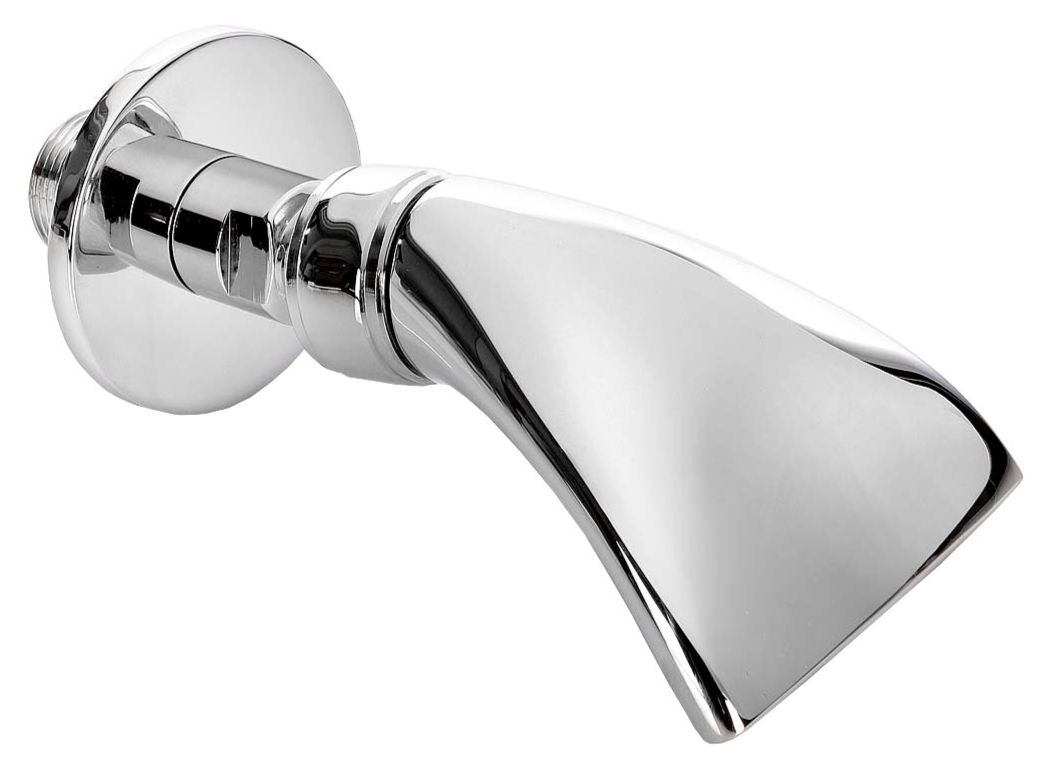

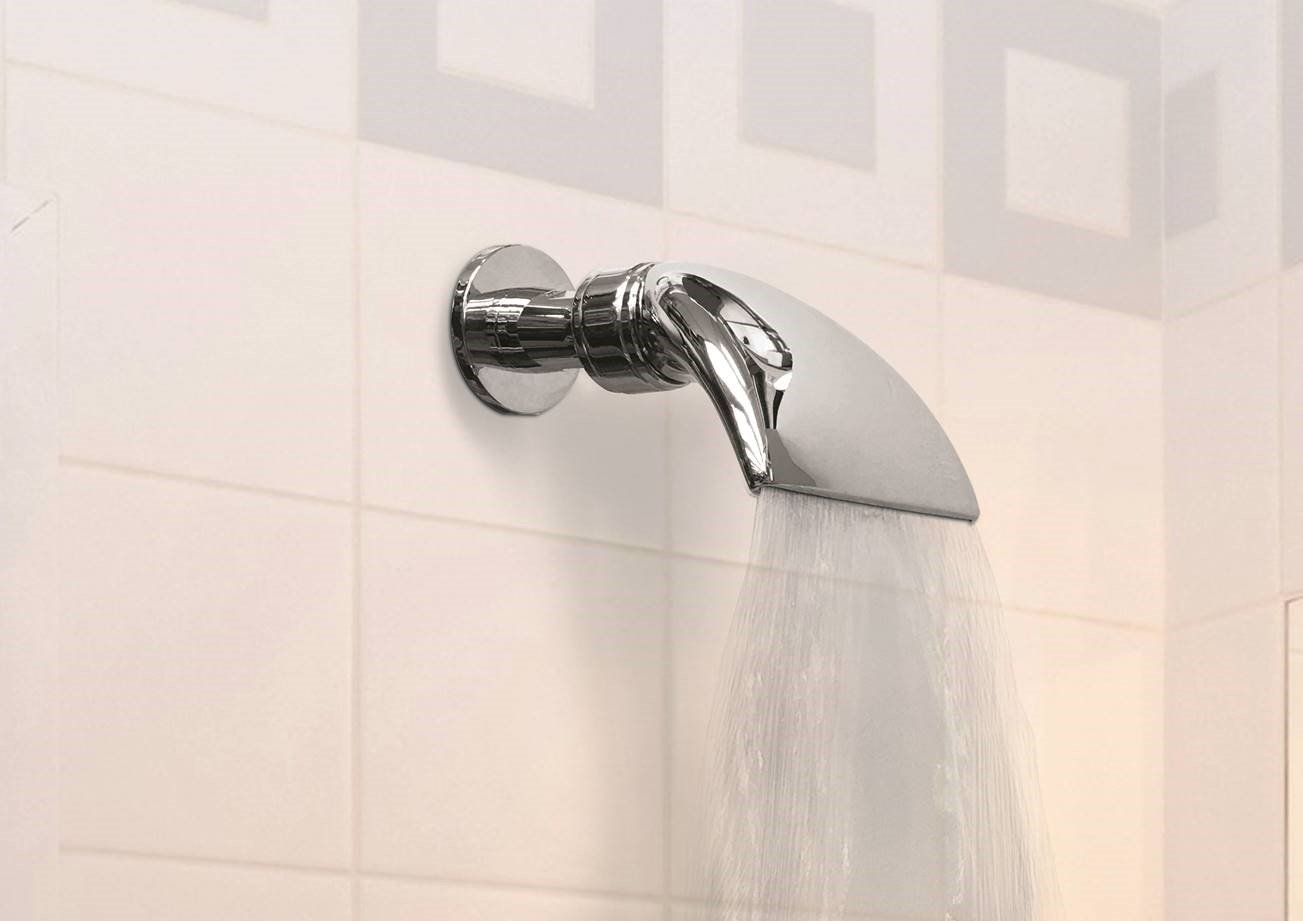

Flood showers curved incl. ball joint and wall rose
Connection thread 1/2"
art. no. 87004
water flow approx. 75 l/min. (at 3 bar water pressure), dim. outside: WxHxD approx. 83x60x145 mm, weight approx. 650 g
Connection thread 3/4"
art. no. 87014
water flow approx. 75 l/min. (at 3 bar water pressure), dim. outside: WxHxD approx. 83x60x145 mm, weight approx. 700 g
Connection thread 1”
art. no. 87020
water flow approx. 145 l/min. (at 3 bar water pressure), dim. outside: WxHxD approx. 142x90x200 mm, weight approx. 1.7 kg

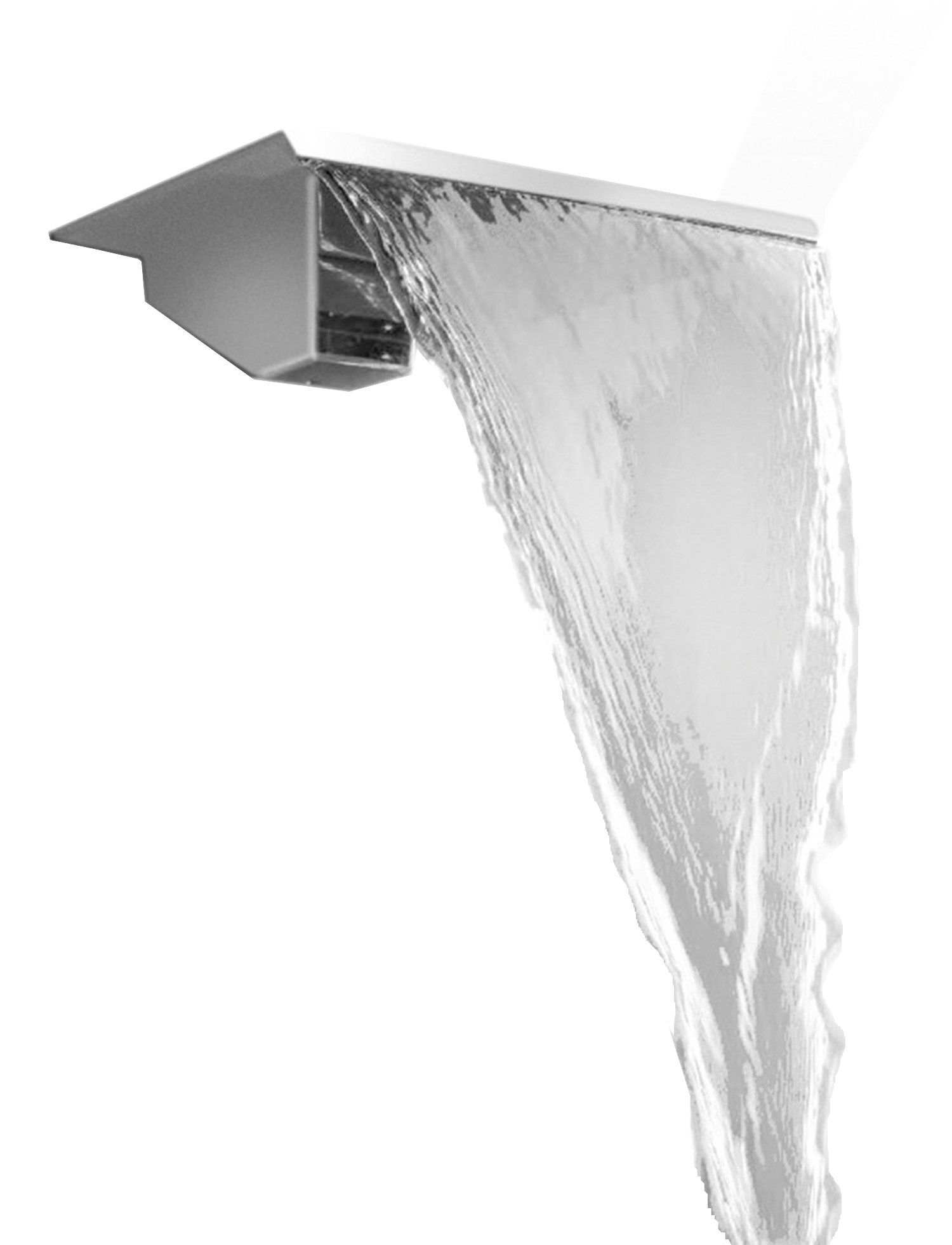

Square flood showers
water flow approx. 17 l/min. (at 3 bar water pressure)
outer dim.: WxHxD approx. 200x40x165 mm
weight approx. 1.5 kg
Connection thread 1/2"
art. no. 87025
Connection thread 3/4"
art. no. 87027
Kneipp-hoses length approx. 1.5 m
art. no. 870810-870835
food-safe, double-walled hose for a soft and full water jet, with high-polished chrome-plated screw cap and flow out made of
metal for hang up in the included wall bracket
Kneipp-hoses with other hose lengths, screw caps or water outlet nozzles
art. no. 87099
are available on request
Kneipp-hose white with screw cap 1/2“
art. no. 870810
weight approx. 770g

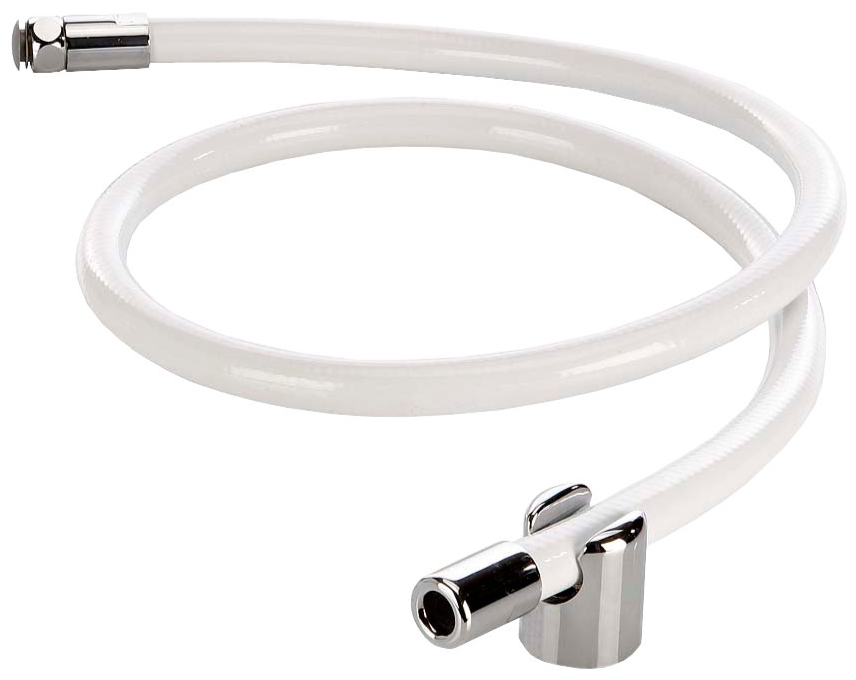

Kneipp-hose white with screw cap 3/4“
art. no. 870830
weight approx. 1.2 kg

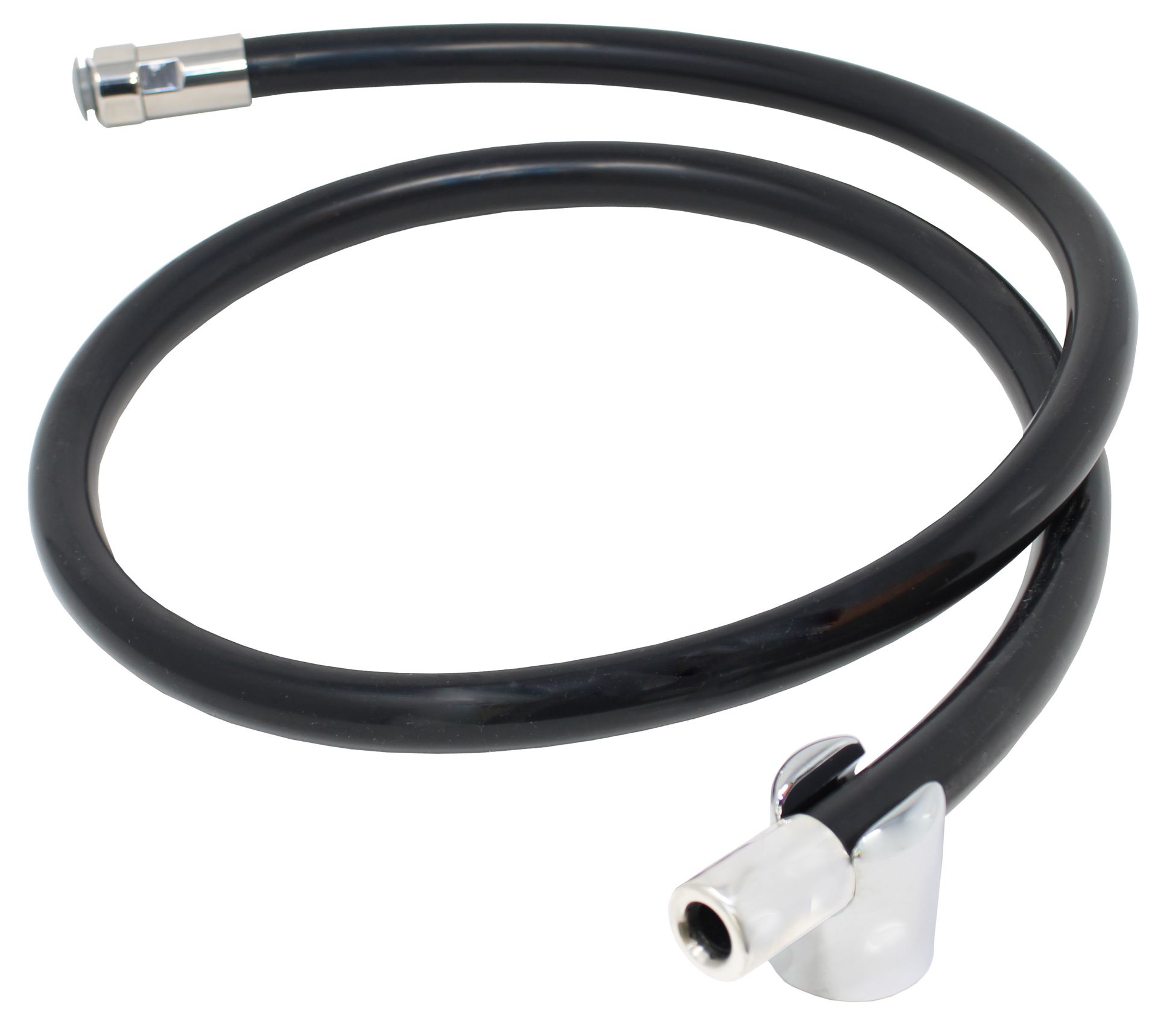

Kneipp-hose black with screwcap 1/2“
art. no. 870813
weight approx. 770 g
Kneipp-hose black with screwcap 1/2“
art. no. 870813
weight approx. 1,2 kg

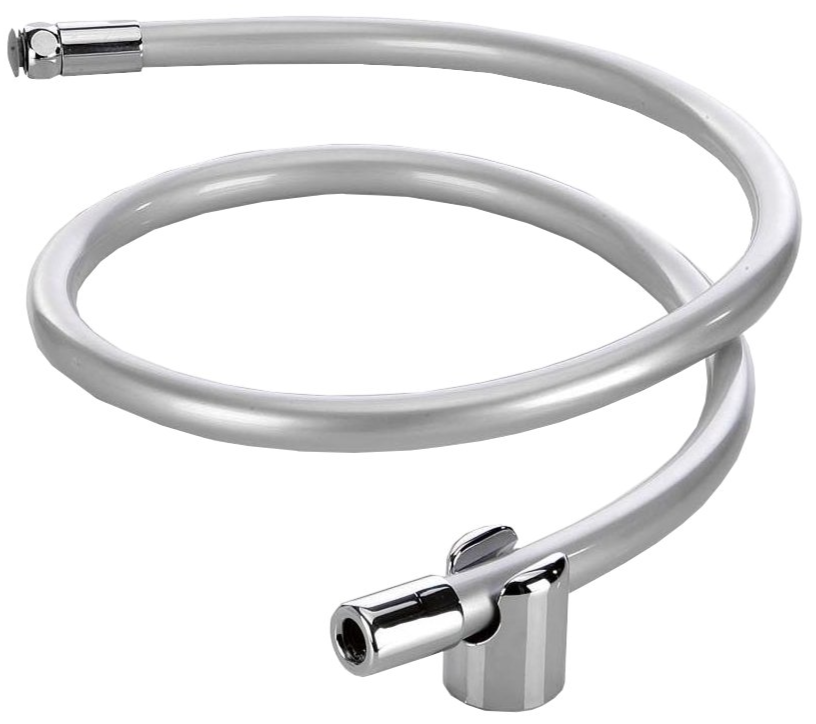

Kneipp-hose silver with screw cap 1/2“
art. no. 870815
weight approx. 770 g
Kneipp-hose silver with screw cap 3/4“
art. no. 870835
weight approx. 1.2 kg

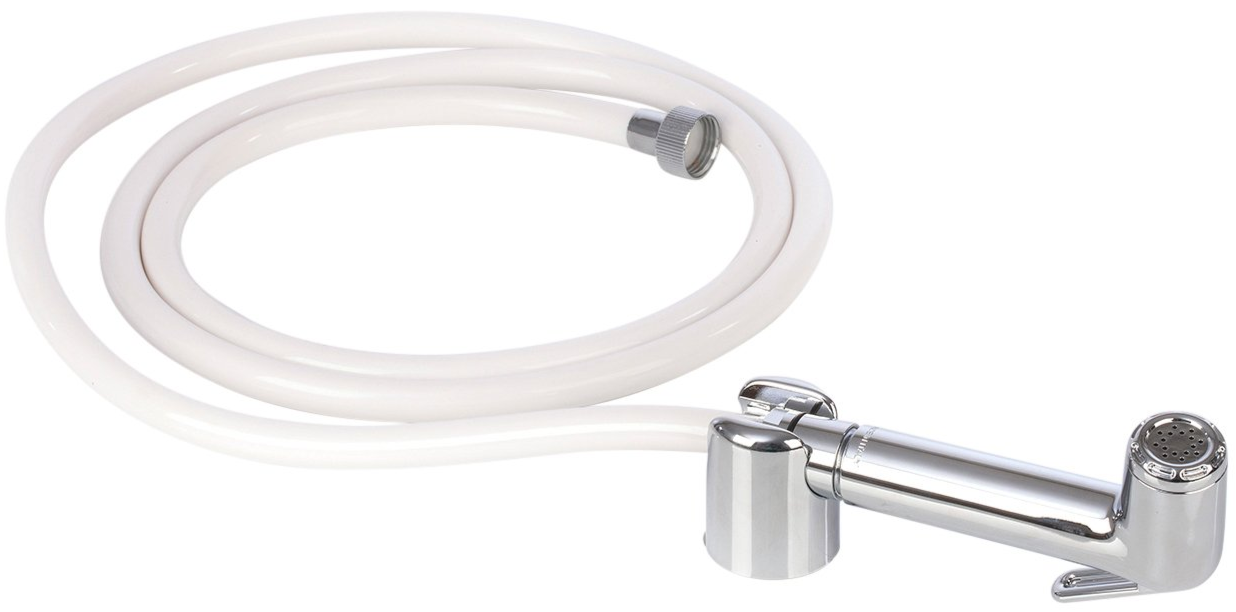

Pressure shower high-polished chrome-plated with white PVC-hose length approx. 2 m and screw cap 1/2”
art. no. 87097
pressure shower made of high-polished chrome-plated ABS - only when the pressure handle gets pushed the water flows and the jet can be regulated by the pressure. A maximum continuous water jet can be adjusted by turning up the pressure handle. Incl. high-polished wall bracket. E. g. suitable for the cleaning of the seats in steam bath rooms. The pressure shower is not suitable for installing with a permanent water pressure - after using the pressure shower the water pressure has to be disconnected by using a separate lock valve!
weight approx. 340 g
Info board Kneipp procedure international DIN A4
art. no. 87089
2-coloured illustrated with pictures (copyright), water-, steam- and abrasion resistant laminated, for hang up at the Kneipp-hose, informs about the recommended application of the Kneipp-hose. Company print is possible.
Dim.: WxH approx. 215x300 mm
weight approx. 35 g
Water fittings made of high-polished chrome-plated brass
Wall connection angle valves
high quality product with back stream protector. If no self safe stop valve is used, you have to install an additional pipe ventilation on site!
Wall connection angle valve 1/2x1/2“
art. no. 870720
suitable for art. nos. 870810, 870815 and 87097, dim.: Ø approx. 54 mm, height approx. 32 mm, weight approx. 150 g
Wall connection angle valve 3/4x3/4“ or 1/2x3/4”
art. no. 87073
suitable for art. no. 870830 and 870835, incl. change thread for water connection 1/2” instead of 3/4”, dim.: Ø approx. 50 mm, height approx. 55 mm, weight approx. 700 g
water saving due to abjustable automatic-stop after approx. 0-40 seconds

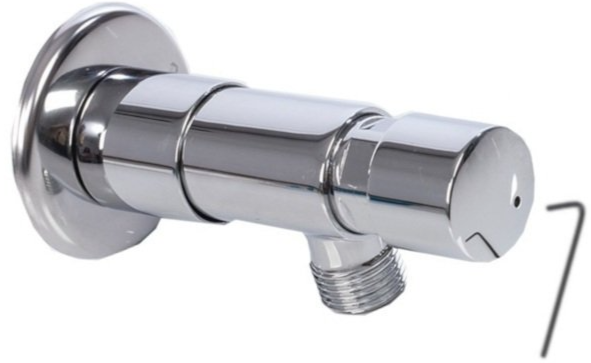

Self-closing valve 1/2x1/2”
art. no. 87075
the water run time is adjustable by the customer with the included Allen key from approx. 0-40 seconds, suitable for a water pressure of 0.1-3 bar, incl. wall rose, without integrated back stream protector; suitable for art. nos. 870810, 870815 and 87097
dim.: WxH approx. 33x130 mm
weight approx. 360 g
