Self-closing door hinges for glass and wooden doors, complete glass doors
eliga door hinges self-closing for glass doors
- self-closing within an opening range of 0° - approx. 140° (or for tongue- and angled form 0° - approx. 85° are available on request)
- static within a range of approx. 140° - 180° (or for tongue- and angled form approx. 85° - 180° are available on request)
- warmth- and energy-saving, avoids open doors because of careless users!
- patent-protected
- glass pane can be fitted floor-flushed as it will be slightly lifted by the opening movement

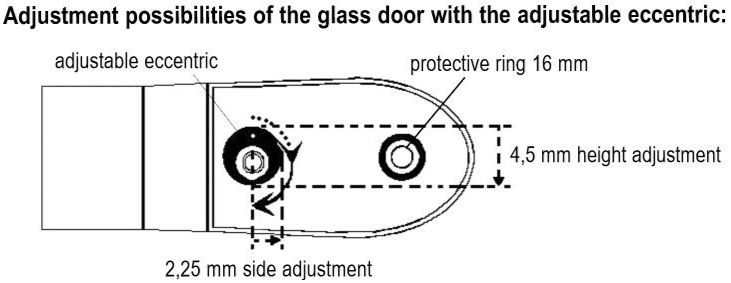

- height- and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the adjus-table eccentric is possible (see drawing)
- for attachment in the door rabbet with the screw-on band
- the complete pre-assembled door hinge is made of corrosion-free zinc die-casting, with turning pin and screws made of stainless steel
- all our door hinges are delivered for glass doors 8 mm thick. Please inform use in advance if you need it for other glass door thicknesses (6 or 10 mm)
- for usage in saline environment air you need special door hinges - please contact us in advance for this!
- on request we can offer you surface coatings in every colour according to the RAL-colour chart
Design: Tongue form*
for private and commercial facilities
surface/fastening in rabbet with screw-on band:
art. no. 852034 matt-chrome DIN left
art. no. 852035 matt-chrome DIN right
remarks: for glass pane inside in door frame
glass bore holes: 2 pieces (dimension sheet on request)
dimensions glass door max. HxW: 2000x900 mm
dimensions WxH approx.: 132x124 mm
weight approx.: 720 g

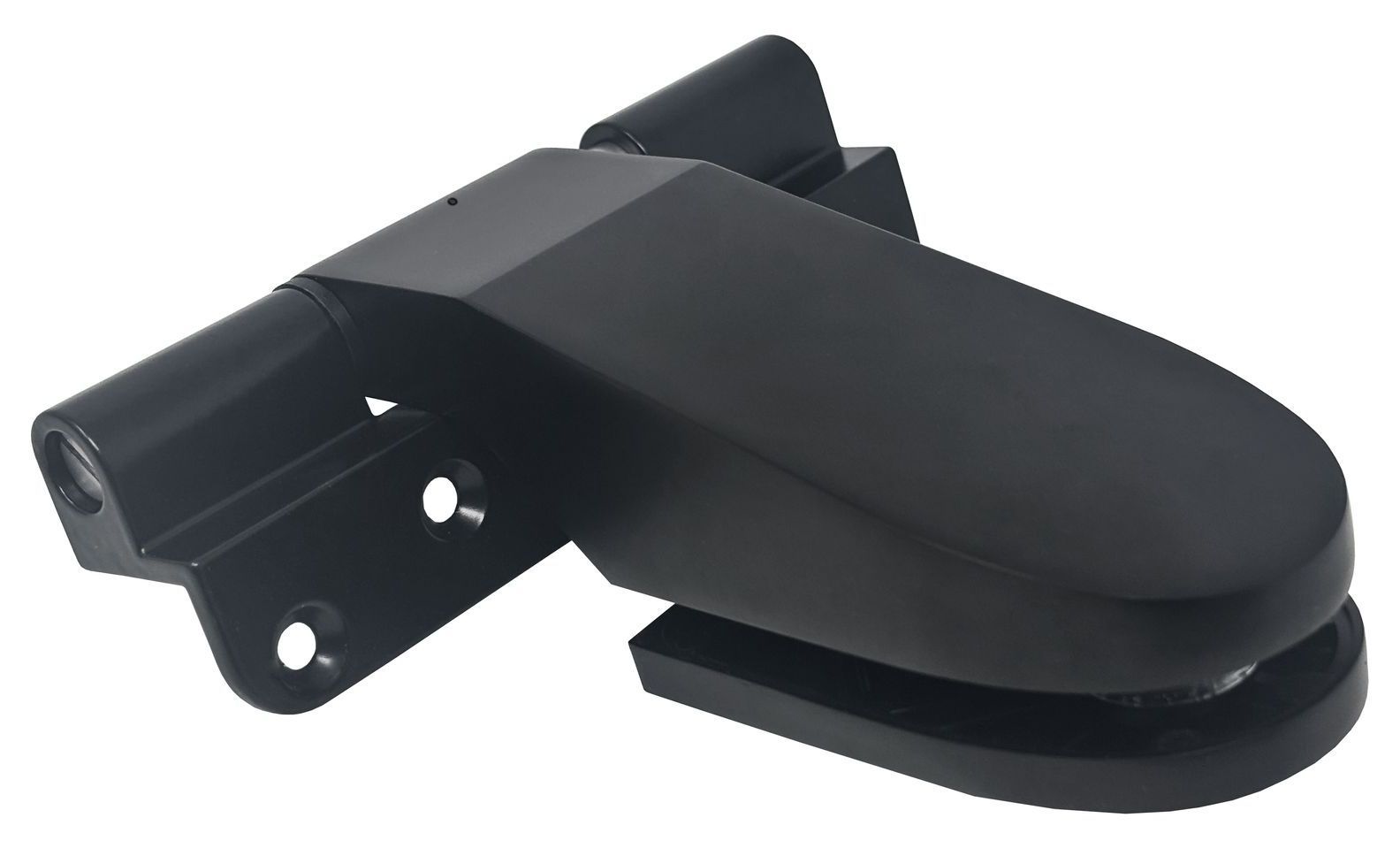

Design: Tongue form*
for private and commercial facilities
surface/fastening in rabbet with screw-on band:
art. no. 852036 matt-black DIN left
art. no. 852037 matt-black DIN right
remarks: for glass pane inside in door frame
glass bore holes: 2 pieces (dimension sheet on request)
dimensions glass door max. HxW: 2000x900 mm
dimensions WxH approx.: 132x124 mm
weight approx.: 720 g

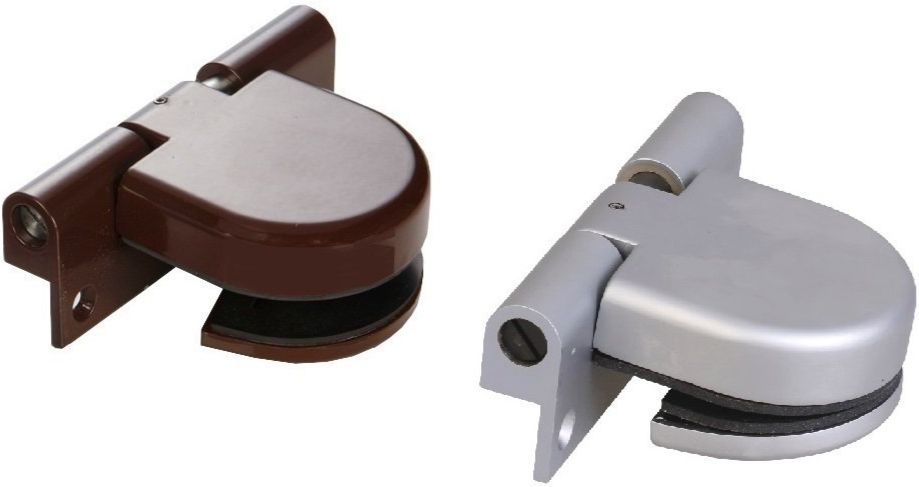

Design: Modern Art*
for private facilities
surface/fastening in rabbet with screw-on band:
art. no. 852040 brown DIN left
art. no. 852041 brown DIN right
art. no. 852044 matt-chrome DIN Left
remarks: for glass pane straight with door frame
glass bore holes: 1 pieces (dimension sheet on request)
dimensions glass door max. HxW: 1800x700 mm
dimensions WxH approx.: 71x105 mm
weight approx.:
420 g

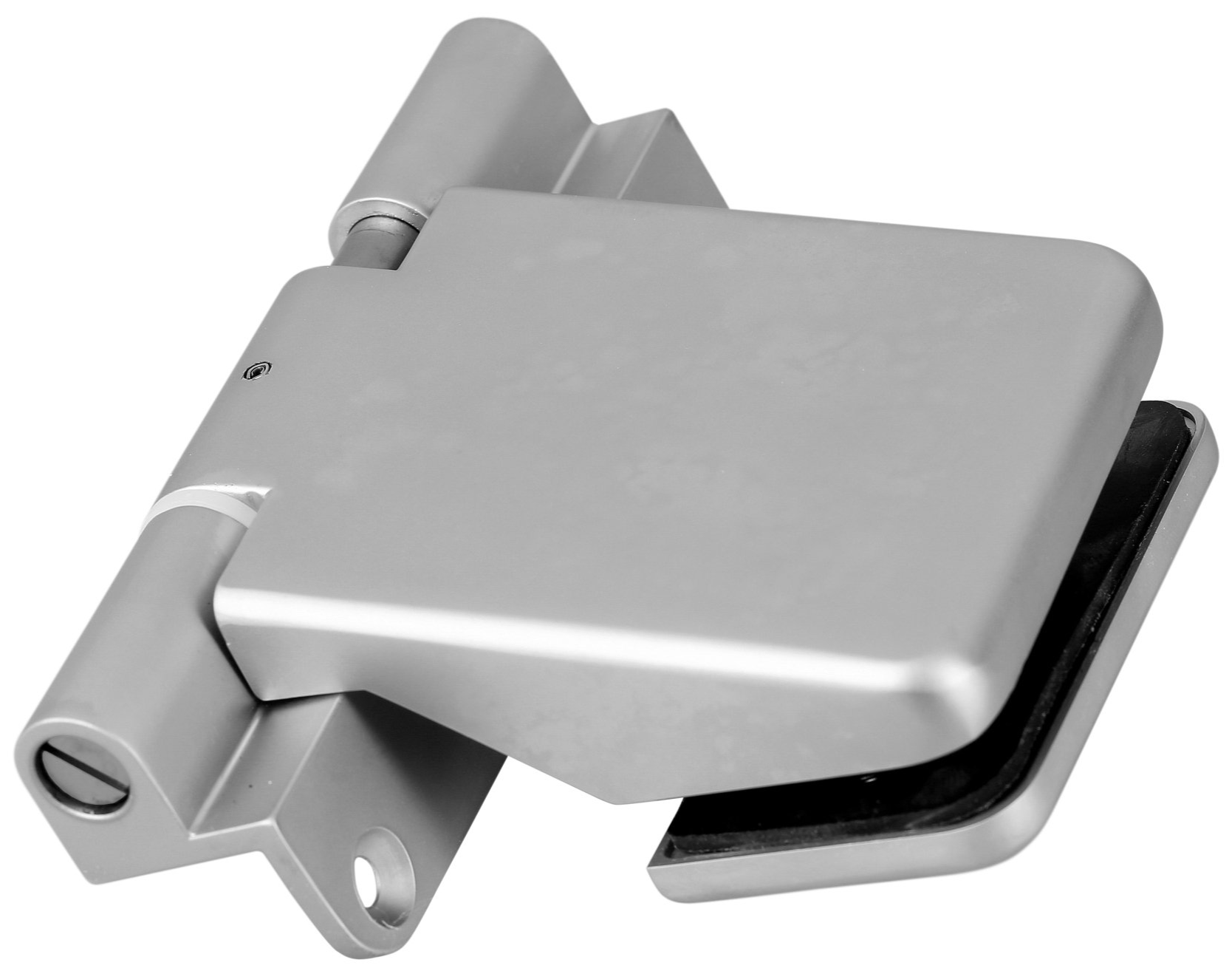

Design: Angled form*
for private and commercial facilities
surface/fastening in rabbet with screw-on band:
art. no. 852054 matt-chrome DIN left
art. no. 852055 matt-chrome DIN right
remarks: for glass pane inside in door frame
glass bore holes: 2 pieces (dimension sheet on request)
dimensions glass door max. HxW: 2000x900 mm
dimensions WxH approx.: 98x124 mm
weight approx.: 700 g
Design: Long form*
for private facilities
surface/fastening in rabbet with screw-on band:
art. no. 852060 brown DIN left
art. no. 852061 brown DIN right
art. no. 852064 matt-chrome DIN left
remarks: for glass pane inside in door frame
glass bore holes: 2 pieces (dimension sheet on request)
dimensions glass door max. HxW: 1800x850 mm
dimensions WxH approx.: 128x105 mm
weight approx.: 540 g
*accessory kit: adjustable eccentric, fastening screws, cover caps big/small and protective rings will be supplied in the requested quantity.
Glass doors with frame
Glass doors with frame
art. no. 852099
we offer you glass doors itself or with a frame made of wood or aluminium incl. door hinge, handle, closure and sealing for sauna and steam bath completely according to your request.
Door hinges for wooden doors - Assistance tools for an exact adjustment you can see at Assistance tools click here

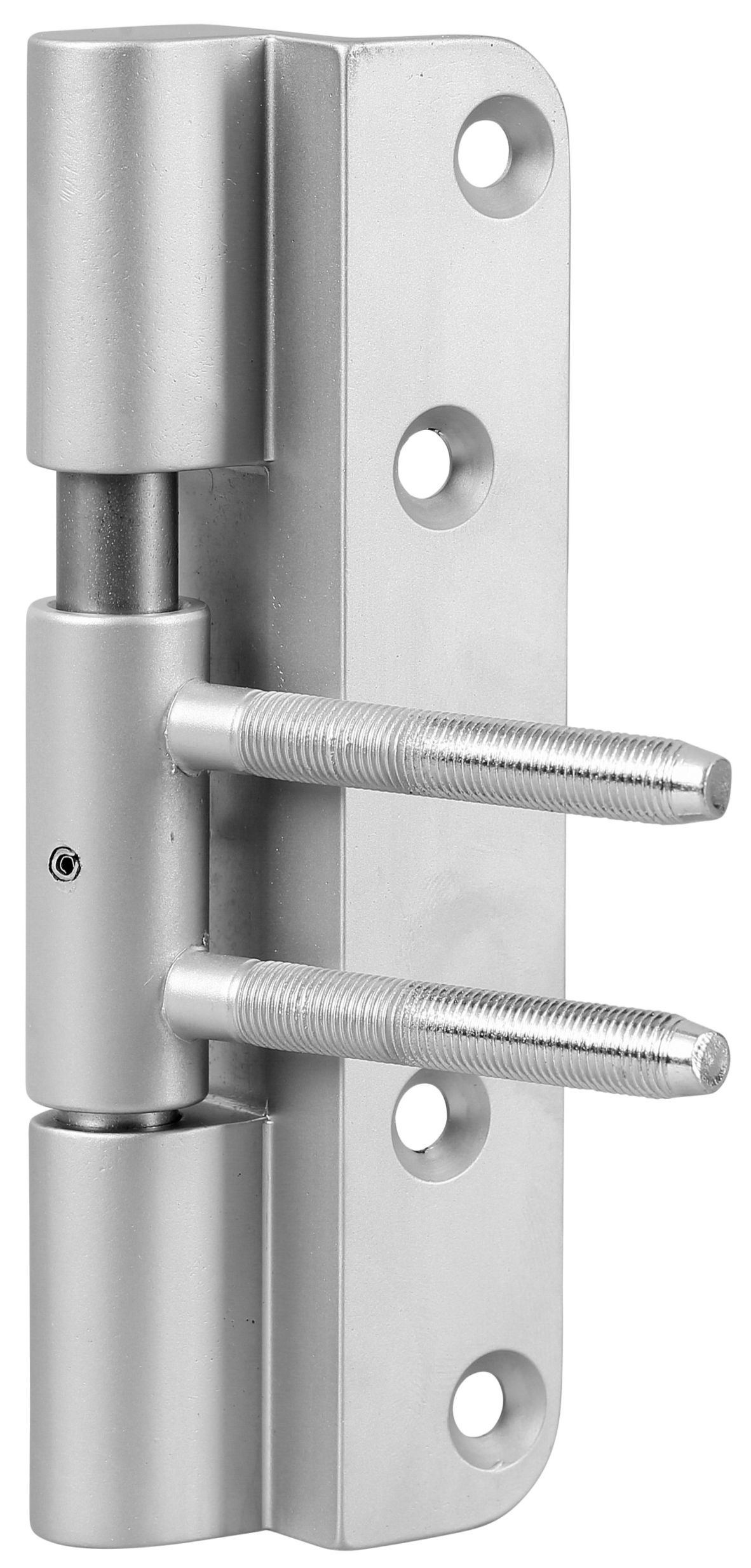

Self-closing door hinges for wooden doors
completely pre-assembled for screwing in the door rabbet with the screw-on band length 125 mm as well as a rotary part with 2 drive-in threaded pins M7x50 mm for fastening in the wooden door pane, surface matt-chrome, suitable for max. door dim. HxW 2000x900 mm
weight approx. 300 g
DIN left
art. no. 852090
DIN right
art. no. 852091
Standard door hinges for wooden doors
completely pre-assembled with 1 drill-in threaded pin M8x50 mm for attachment in the wooden door pane as well as turning pin made of stainless steel fixed in a noiseless and maintenance-free plastic slide bearing, incl. 2 cover caps for the turning pin, opening angle 180°, load-bearing capacity 20 kg/piece
weight approx. 120 g
Door hinges for drill-in
2 drill-in threaded pins M8x40 mm for the attachment at the door frame
dim.: HxWxD approx. 55x15x16 mm
Colour brown
art. no. 85171
Colour white
art. no. 85172
Door hinge brown with screw-on band
art. no. 85176
screw-on band with 4 fastening drill holes for the attachment at the door frame
dim.: HxWxD approx. 84x15x20 mm
